Blind-Mate In-Flight and Dead-Face Disconnects

Blind-Mate, Fixed, and Float-Mount Interconnects for Launch, Satellite, and Payload Deployment Applications

Series 253

Space-grade SuperNine® circular blind-mate assisted separation force (ASF) and Dead-Face (DF) connectors IAW MIL-DTL-38999 for use in interconnection and in-flight separation of instrumentation panels, satellites, scientific research payloads, and other applications. Category includes both standard signal and high-speed variants as well as qualified connector accessories.

• Available in most symmetrical MIL-STD-1560 and high-speed insert arrangements with contacts sizes from #23 to #8
• Select designs offered with user-configurable assisted separation force (ASF) feature
• NASA outgassing bake-out process available
• Designed to withstand the rigors of launch and flight—including shock, vibration, thermal vacuum, acceleration, and temperature extremes
• Crimp-removable contacts standard. PC tails, dual-flange standoffs, hermetically sealed, and custom blind-mate configurations available

Glenair Series 253 blind-mate connectors with assisted separation force are used for interconnection and deployment of satellites, scientific payloads, interstage applications and more. This versatile family of highly engineered and environmentally sealed connectors is also appropriate for use in missile umbilical and weapons release.

Reference

• Overview: Blind-Mate In-Flight and Dead-Face Disconnects
• Table of Contents / Selection Guide
• Technology Overview: Blind-Mate, Assisted Separation Force, Dead-Face, and Other Payload Deployment Interconnects
• Class G and NASA Space-Grade Guidelines

Related Glenair Product

• MIL-DTL-38999 Series III Type Connectors: SuperNine® Advanced Performance

On this page...

• SuperNine Blind-Mate Assisted Separation Force Connectors with MIL-STD-1560 Power and Signal Insert Arrangements
• SuperNine Dead-Face Connectors with MIL-STD-1560 Power and Signal Insert Arrangements
• SuperNine Blind-Mate Assisted Separation Force Connectors with High-Speed Data and RF Insert Arrangements

Space Mechanisms > Blind-Mate

---

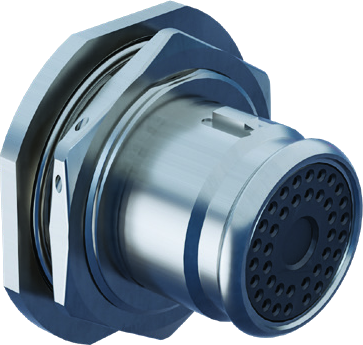

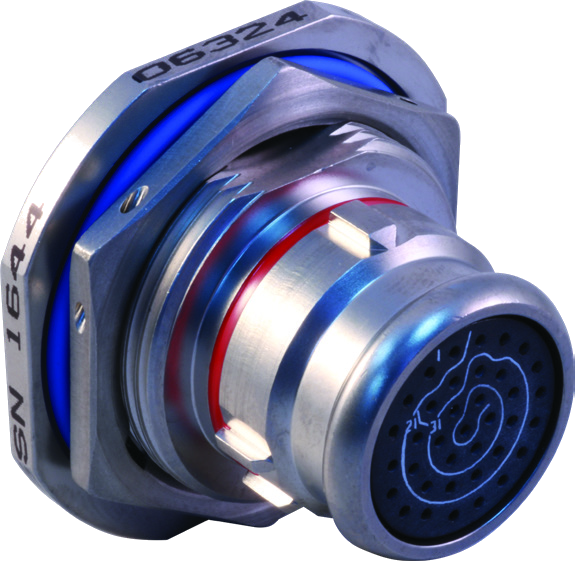

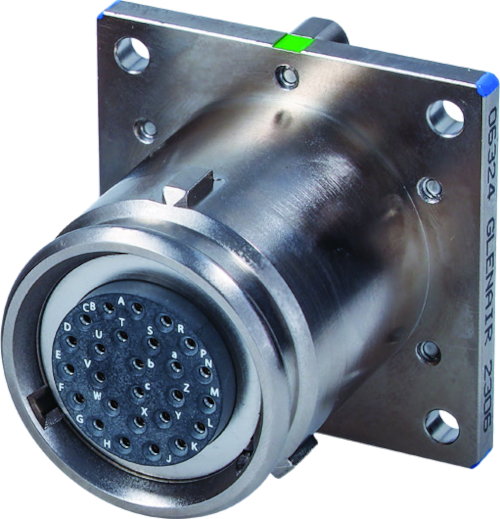

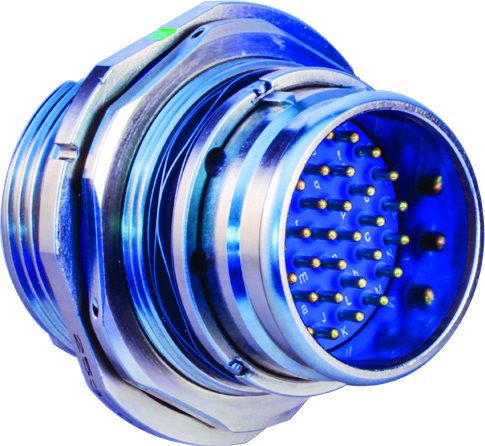

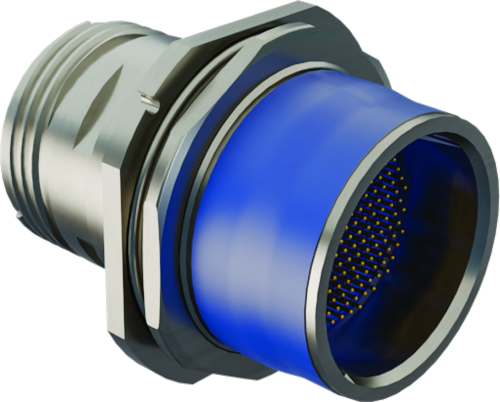

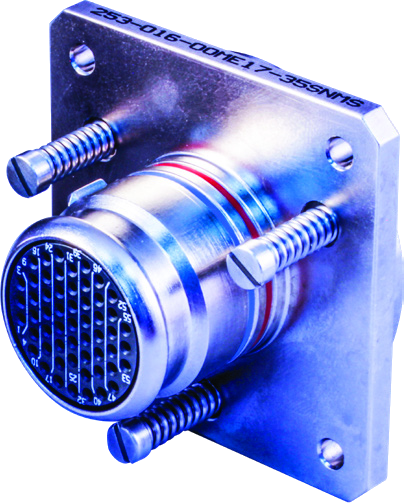

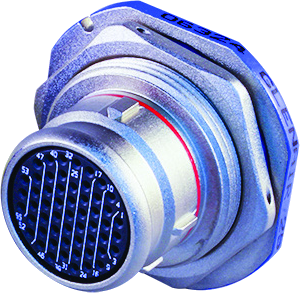

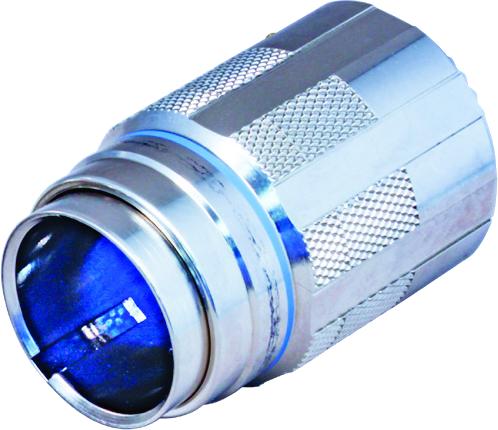

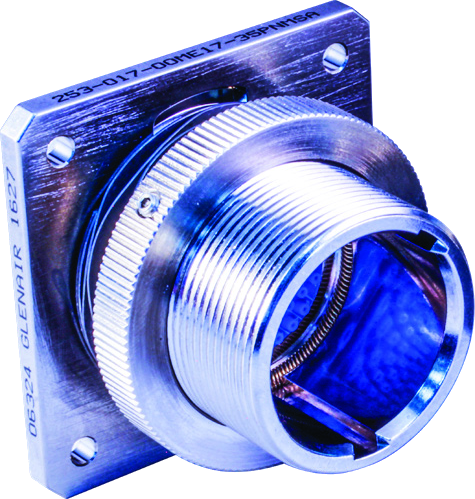

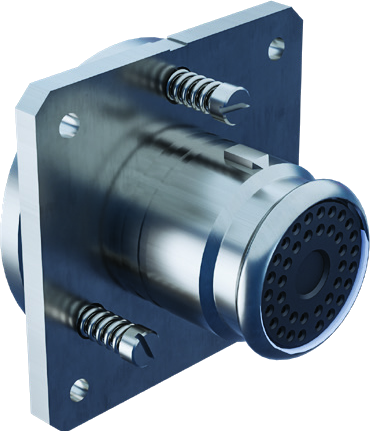

SuperNine Blind-Mate Assisted Separation Force Connectors with MIL-STD-1560 Power and Signal Insert Arrangements

Blind-Mate and Assisted Separation Force Connectors for Space Flight Applications

Glenair blind-mate assisted separation force connectors are engineered for mission-critical in-flight electrical disconnect applications, including satellite deployment, spacecraft stage separation, missile staging, and umbilical release. These connector pairs deliver precisely tuned assisted separation characteristics—with fully-configurable degrees of force — eliminating the need for lanyard-based actuation technologies

Reference

• MIL-STD-1560 Standard Contact Arrangements
• MIL-STD-1560 High-Density Contact Arrangements
• MIL-STD-1560 Combo Contact Arrangements

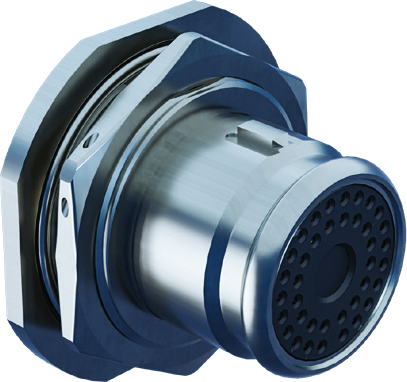

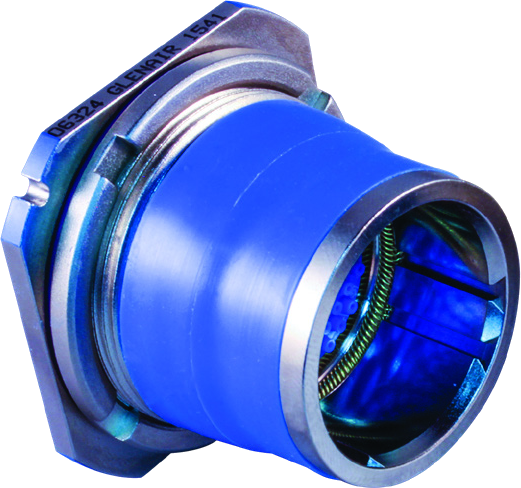

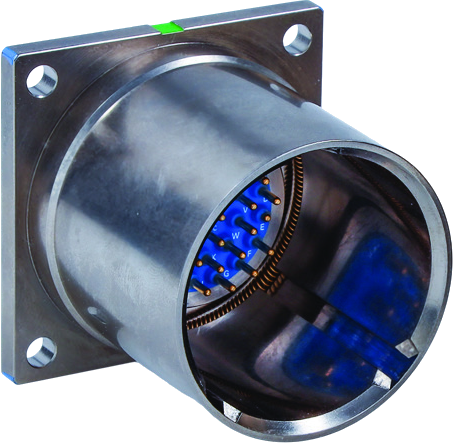

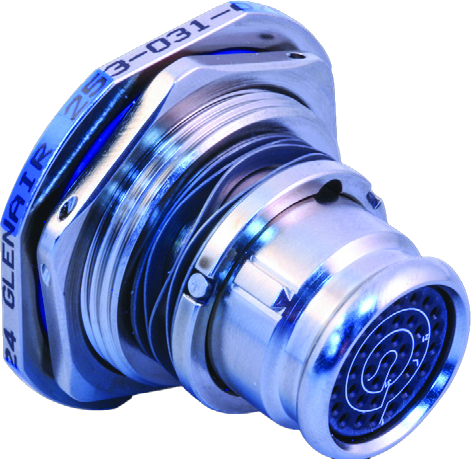

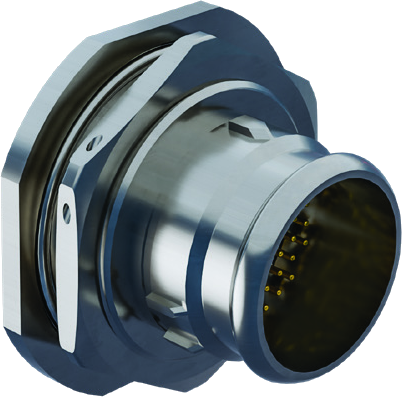

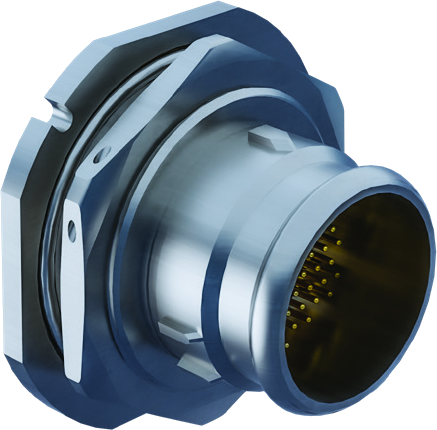

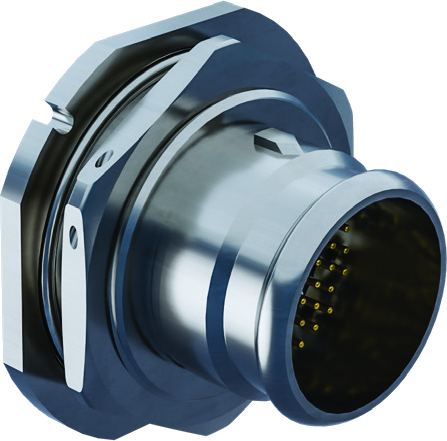

SuperNine Dead-Face Connectors with MIL-STD-1560 Power and Signal Insert Arrangements

Dead-Face In-Flight Separation Connectors

Glenair dead-face (DF) blind-mate connectors are designed for critical in-flight separation tasks in spacecraft, satellite systems, and missile staging. These connectors feature built-in electrical isolation that occurs prior to mechanical disconnection — enhancing system safety and electrical integrity during separation events.

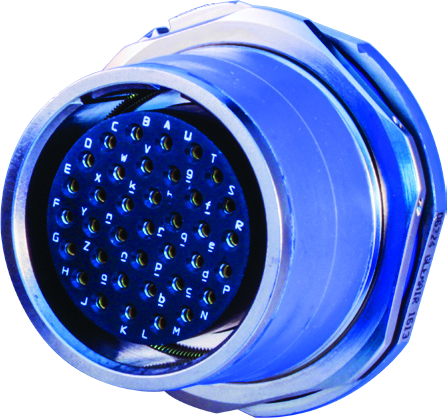

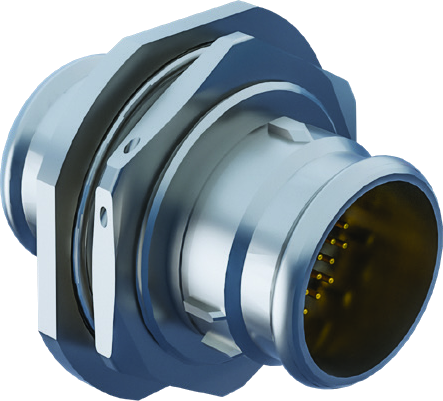

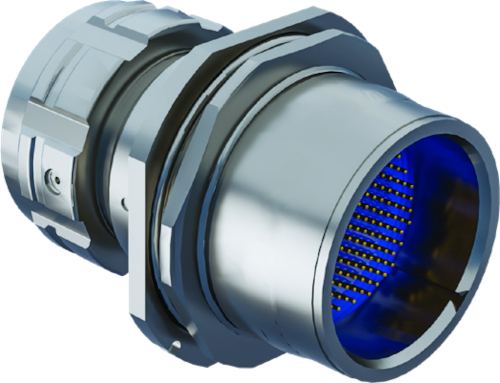

SuperNine Blind-Mate Assisted Separation Force Connectors with High-Speed Data and RF Insert Arrangements

El Ochito® Contacts for Harsh Environment Military and Aerospace Data Networks

El Ochito® "White" octaxial contacts simplify the task of upgrading military and aerospace platforms to meet the high data rate demands of 1000BASE-T and 10GBASE-T. Metal spline isolates data pairs for improved signal integrity. "Ochito Red" contacts support multi-gigabit data protocols such as HDMI and DisplayPort. 90 ohm Ochito "Blue" contacts support SuperSpeed USB. El Ochito® contacts are compatible with Series 23 SuperNine® (MIL-DTL-38999 Series III) connectors with keyed size 8 contact cavities.

• 10GBASE-T, SuperSpeed USB, and Multi-Gigabit Shielded Pairs
• Data Pair Isolation Technology
• Snap-In, Rear Release
• Environmentally Protected
• Aerospace-Grade Performance

Reference

• High-Speed Contact Arrangements for Data / RF Series
• Overview: El Ochito® Octaxial Aerospace-Grade Contacts
• El Ochito® Octaxial "White," "Blue," and "Red" Contact Specifications
• El Ochito® Contact Configuration and Mod Code 909
