Glenair high-frequency Coax connectors and cables are used in radar, antennas, transponders and other equipment part of RF data transmission chains in military defense, aviation, and satellite platforms. The rugged, environmental construction of Glenair RF connectors and contacts, combined with our dimensionally stable coax cables, makes these elements ideally suited for use in harsh application environments where low-loss performance is a mission requirement. Glenair is one of just a few interconnect manufacturers that can also supply turnkey coax cable assemblies — fully connectorized and ready for immediate use.
Reference
Home > RF, Microwave, and mmWave Interconnects
Glenair PALS Approved Interconnect Technologies reduce assembly process-time and skilled labor requirements in EWIS applications.
Our Unique High-Frequency RF Interconnect Value Proposition
Turnkey Solutions: Integrated RF assemblies built around Glenair aerospace-grade COAX connectors, contacts, adapters, and cables.

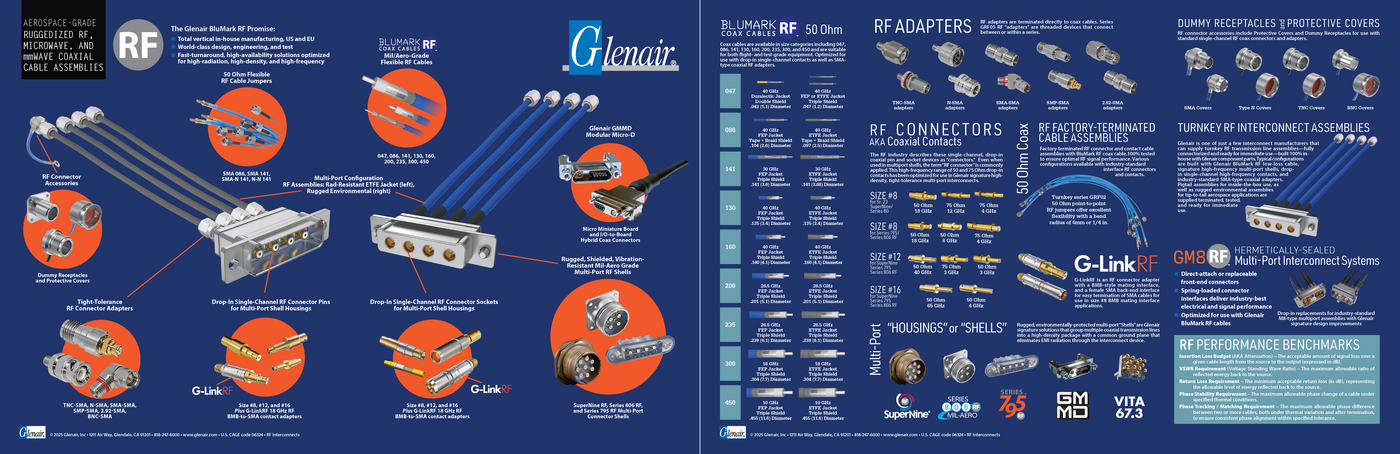

Glenair BluMark RF™ Cable, Contact, and Connector Ecosystems
-

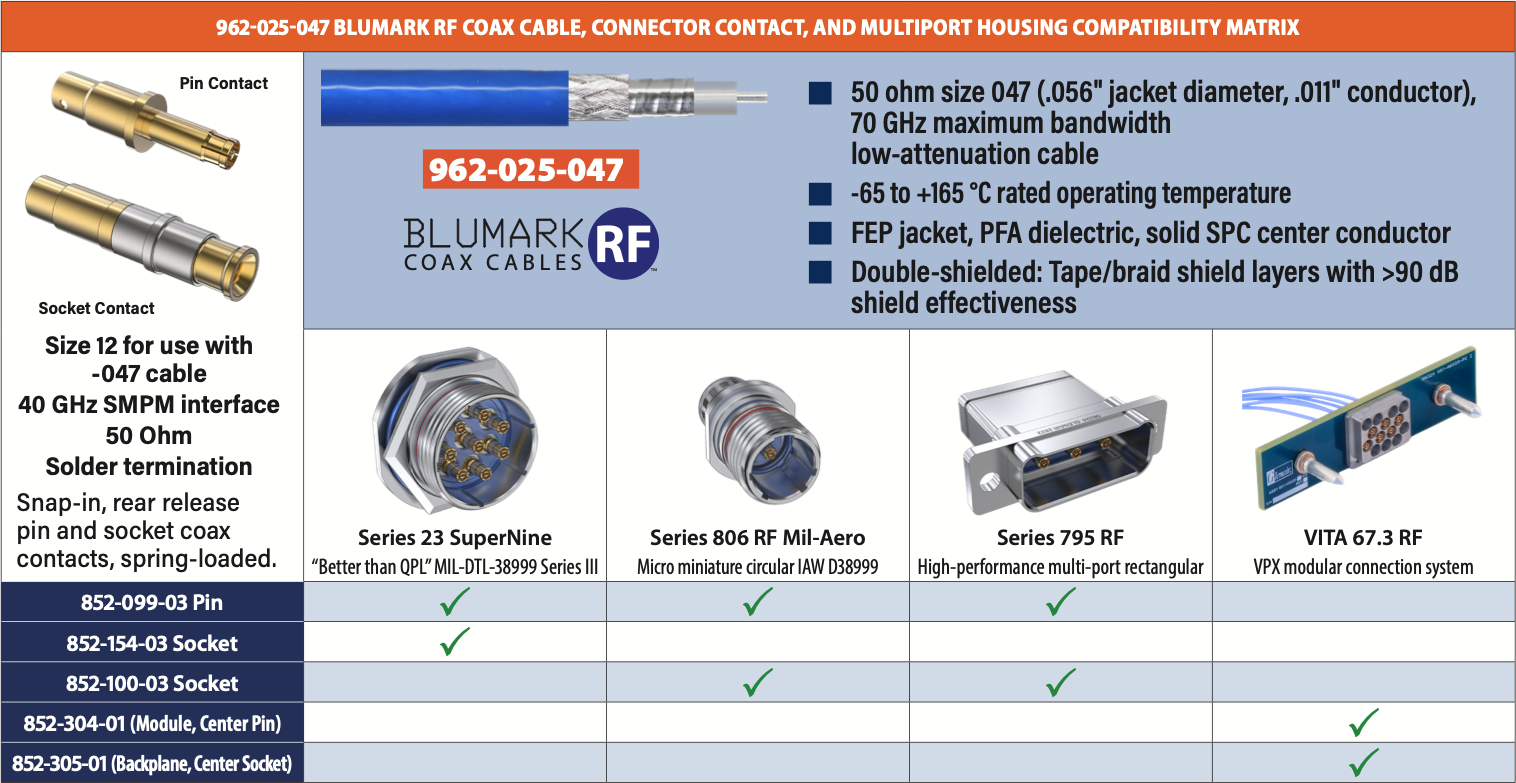

Blumark RF Coax Cable, Connector Contact, and Multiport Housing Compatibility Matrix
Size 12
-
Blumark RF Coax Cable, Connector Contact, and Multiport Housing Compatibility Matrix
Size 16
-
Blumark RF Coax Cable, Connector Contact, and Multiport Housing Compatibility Matrix
Size 8
-
Blumark RF Coax Cable, Connector Contact, and Multiport Housing Compatibility Matrix
Size 12
RF, Microwave, and mmWave Interconnect Test Reports
Glenair QwikConnect MagazineJanuary 2023Volume 27Number 1
Turnkey Coaxial Interconnect Solutions: Integrated RF Interconnect Assemblies built from Aerospace-Grade Connectors, Contacts, Adapters, and Glenair BluMark RF Coax Cables.
Series 795
Series 806
Series 852
Series 962
Series GRF02
- eBook
- PDF (Single pages, print friendly)
On this page...

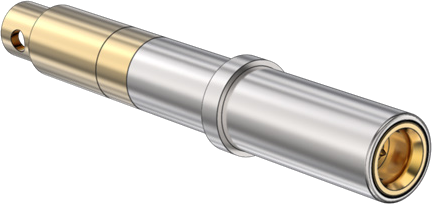

Coax Contacts for Multi-Port Mil-Aero Connectors
Series 852

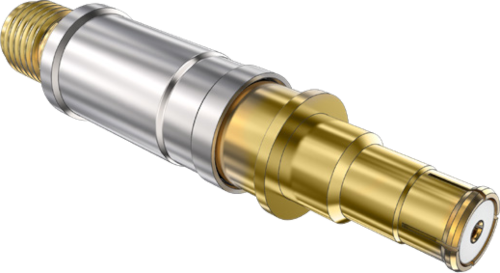

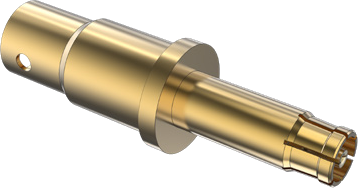

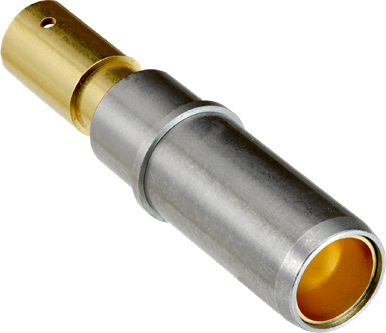

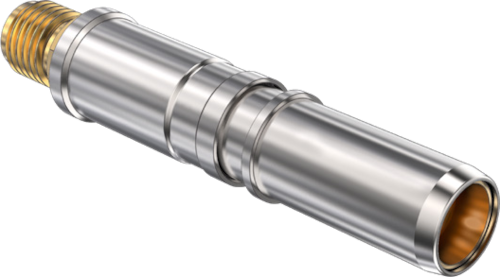

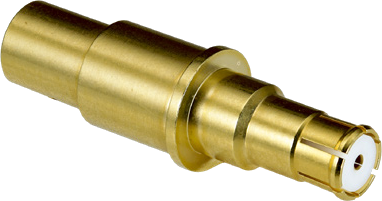

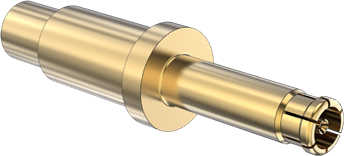

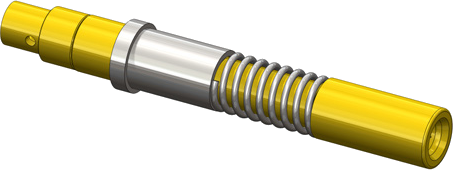

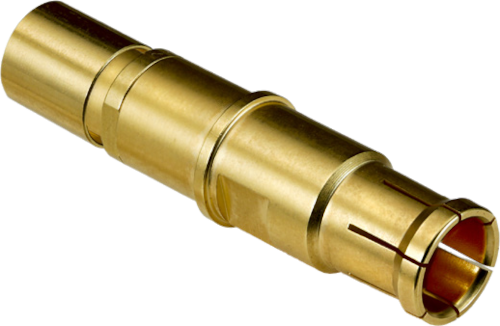

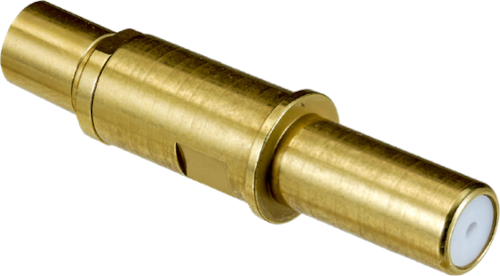

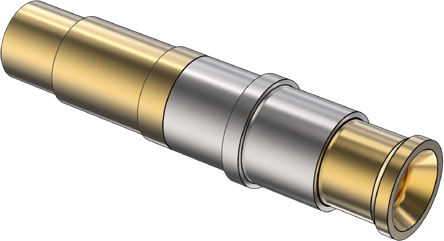

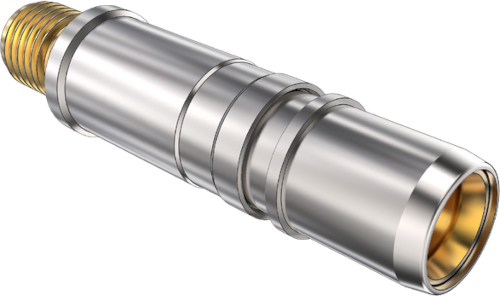

Series 852 Coax Contacts for multiport military/aerospace connectors. 50 ohm and 75 ohm. Contacts snap into rear-release Glenair Series 23 SuperNine, Series 80 Mighty Mouse, Series 795 Micro-Crimp, and Series 806 RF connectors. Consult factory for use with MIL-DTL-38999 connectors
Available in sizes 8, 12, and 16, these contacts are compatible with popular "RG" coax cable sizes. Spring-loaded versions offer low insertion loss when used with high frequency flexible microwave and mmWave cables.
 |
Snap-in, rear release coax contacts fit Glenair Series 80 Mighty Mouse connectors, Glenair Series 23 SuperNine and MIL-DTL-38999 connectors with size 8 contact cavities. BMB-style contact features G-LinkRF female SMA adapter and integral release sleeve. Attach male SMA plug directly to contact, no soldering required. 50 ohm nominal impedance. DC – 18 GHz frequency range.
- GLinkRF SMA adapter. 18 GHz. 50 ohm. Size 8.
|
 |
Snap-in, rear release coax contacts fit Glenair Series 80 Mighty Mouse connectors, Glenair Series 23 SuperNine and MIL-DTL-38999 connectors with size 8 contact cavities. 50 ohm nominal impedance. DC – 6 GHz frequency range. Inner contact is solder type, shield termination is crimp type. Supplied as unassembled kit with instruction sheet.
|
 |
Snap-in, rear release coax contacts fit Glenair Series 80 Mighty Mouse connectors, Glenair Series 23 SuperNine and MIL-DTL-38999 connectors with size 8 contact cavities. 50 ohm nominal impedance. DC – 18 GHz frequency range. Solder termination. Consult factory for optimal connector selection.
- 18 GHz. Spring-loaded BMB interface. 50 ohm. Size 8.
|
 |
Snap-in, rear release coax contacts fit Glenair Series 80 Mighty Mouse connectors, Glenair Series 23 SuperNine and MIL-DTL-38999 connectors with size 8 contact cavities. 75 ohm nominal impedance. DC – 4 GHz frequency range. Crimp termination. Supplied as unassembled kit with assembly instruction sheet.
- Low loss. 75 ohm. Size 8.
|
 |
Snap-in, rear release coax contacts fit Glenair Series 80 Mighty Mouse connectors, Glenair Series 23 SuperNine and MIL-DTL-38999 connectors with size 8 contact cavities. 75 ohm nominal impedance. These contacts are designed for use with Belden 4855R 12G-SDI SMPTE cable. DC – 12 GHz frequency range. Center contact is solder termination. Terminate shield with hex crimp. Supplied as unassembled kit with assembly instruction sheet.
- 75 ohm. 12 GHz. Size 8. 4K UHD video.
|
 |

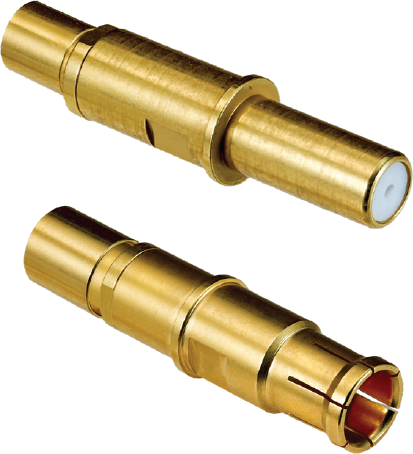

Snap-in, rear release coax contacts fit Glenair Series 795 and Series 806 RF connectors with size 8 contact cavities. BMB-style contact features G-LinkRF female SMA adapter and integral release sleeve. Attach male SMA plug directly to contact, no soldering required. 50 ohm nominal impedance. DC – 18 GHz frequency range.
- G-LinkRF. SMA adapter. 18 GHz. 50 ohm. Size 8.
|
 |
Snap-in, rear release coax contacts fit Glenair Series 79 and Series 806 connectors with size 8 contact cavities. 50 ohm nominal impedance. DC – 6 GHz frequency range. Inner contact is solder type, shield termination is crimp type. Supplied as unassembled kit with instruction sheet.
- Low loss. 50 ohm. Size 8.
|
 |
Snap-in, rear release coax contacts fit Glenair Series 795 and Series 806 RF connectors with size 8 contact cavities. 50 ohm nominal impedance. DC – 18 GHz frequency range. Solder termination. Supplied as unassembled kit with sealing boot and instruction sheet.
- 18 GHz. Spring-loaded BMB interface. 50 ohm. Size 8.
|
 |
Snap-in, rear release coax contacts fit Glenair Series 79 and Series 806 connectors with size 8 contact cavities. 75 ohm nominal impedance. DC – 4 GHz frequency range. Crimp termination. Supplied as unassembled kit with assembly instruction sheet.
- Low loss. 75 ohm. Size 8.
|
 |
Snap-in, rear release coax contacts fit MIL-DTL-38999 connectors and Glenair connectors with size 12 contact cavities. 50 ohm nominal impedance. DC – 3 GHz frequency range. 852-015, -016, -019 are crimp termination, 852-017, -018, -037 are solder termination. Supplied unassembled with instruction sheet.
- Low loss. 50 ohm. Size 12.
|
 |
Snap-in, rear release coax contacts fit MIL-DTL-38999 connectors and Glenair connectors with size 12 contact cavities. Socket contact is spring-loaded for consistent contact engagement and low insertion loss through 40 Ghz. Solder termination. Supplied with cable termination instructions.
- 40 GHz. SMPM interface. 50 ohm. Size 12.
|
 |
Snap-in, rear release coax contacts fit MIL-DTL-38999 connectors and Glenair connectors with size 12 contact cavities. 75 ohm nominal impedance. DC – 3 GHz frequency range. Crimp termination. Supplied unassembled with instruction sheet.
- Low loss. 75 ohm. Size 12.
|
 |
Snap-in, rear release coax contacts fit MIL-DTL-38999 connectors and Glenair connectors with size 16 contact cavities. Solder termination. Supplied unassembled with assembly instructions.
|
 |
Snap-in, rear release coax contacts fit MIL-DTL-38999 connectors and Glenair connectors with size 16 contact cavities. These spring-loaded contacts are suitable for millimeter-wave applications up to 65 Ghz. Use with .047 flexible or semi-rigid cable with 29 AWG signal conductor. Solder termination. Supplied fully assembled with cable termination instructions.
- 65 GHz. SMPS interface. 50 ohm. Size 16.
|
 |

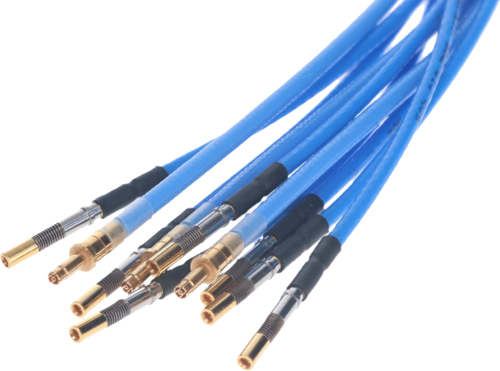

Contacts are supplied pre-terminated from Glenair. Contact the factory for ordering information. 50 ohm. 67 GHz. Nano RF size. Snap-in, rear release high-density Nano RF coax contacts are designed to fit high-density Vita 67.3 connector modules.
- 67 GHz. 50 ohm. Vita 67.3
|

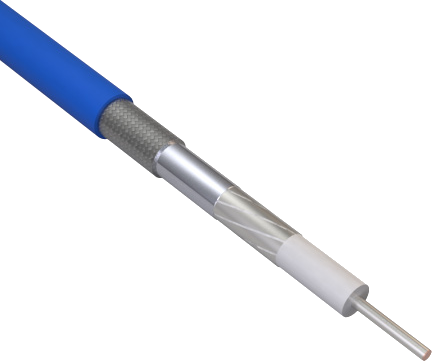

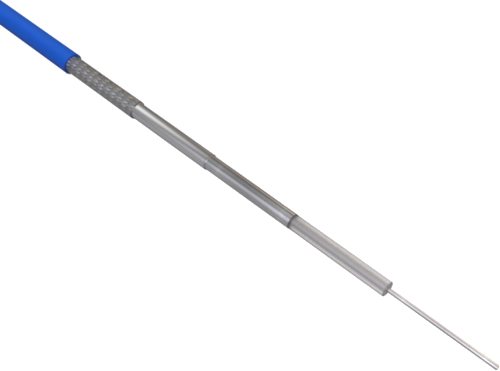

50 Ohm Coax Cable
Series 962

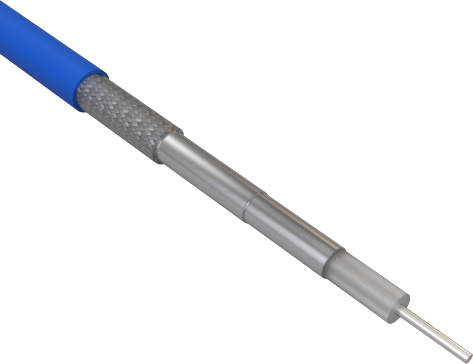

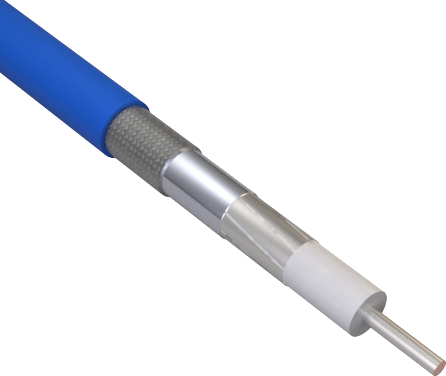

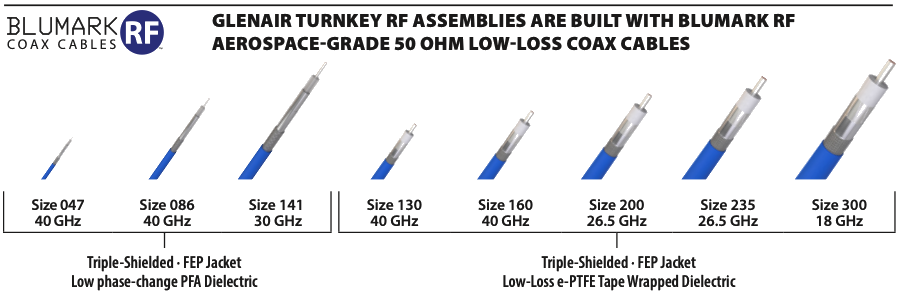

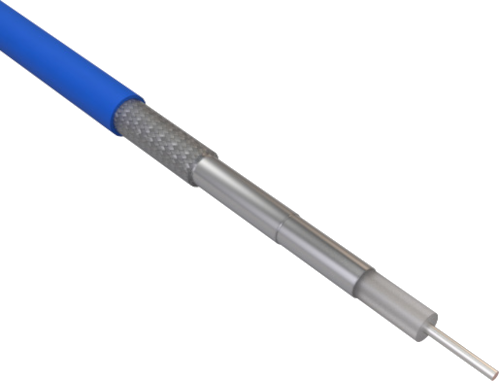

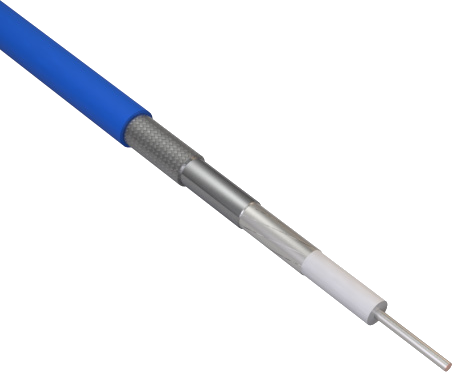

Series 962 BluMark RF 50 Ohm Coax Cables are available in seven size categories: 047, 086, 160, 200, 235, 300 and 450. These low attenuation cables are suitable for aerospace applications and test equipment. Jacket options include FEP and radiation-resistant space-grade ETFE. Triple-shielded high performance cables have expanded PTFE dielectric core for low loss up to 40 GHz.
Standard RF coax cable assemblies feature low-loss cable and precision-grade connectors.
 |
962-009-160 coax cable has expanded PTFE delectric for low attenuation at microwave frequencies. Abrasion resistant and flexible FEP jacket. Three metallic layers for greater than 90 dB of shielding effectiveness: SPC (silver-plated copper) tape inner shield, aluminum/polyimide foil interlayer, and round SPC braid outer shield. Solid SPC center conductor.
- 50 ohm
- 40 GHz
- -55 to +165 °C
- FEP jacket, e-PTFE dielectric
- >95 dB shield effectiveness
- Low attenuation
|
 |
962-009-200 coax cable has expanded PTFE delectric for low attenuation at microwave frequencies. Abrasion resistant and flexible FEP jacket. Three metallic layers for greater than 90 dB of shielding effectiveness: flat SPC (silver-plated copper) tape inner shield, aluminum/polyimide foil interlayer, and round SPC braid outer shield. Solid SPC center conductor.
- 50 ohm
- 26.5 GHz
- -55 to +165 °C
- FEP jacket, e-PTFE dielectric
- >90 dB shield effectiveness
- Tape/foil/braid shield layers
- Low attenuation
|
 |

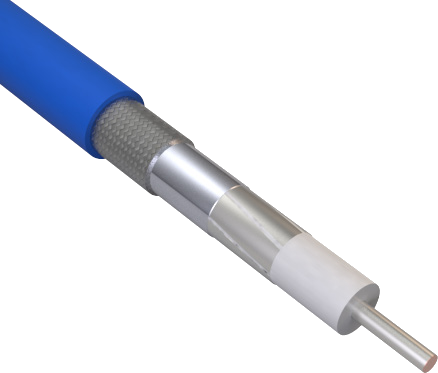

962-009-235 coax cable has expanded PTFE delectric for low attenuation at microwave frequencies. Abrasion resistant and flexible FEP jacket. Three metallic layers for greater than 90 dB of shielding effectiveness: flat SPC (silver-plated copper) flat tape inner shield, aluminum/polyimide foil interlayer, and round SPC braid outer shield. Solid SPC center conductor.
- 50 ohm
- 18 GHz
- -55 to +165 °C
- FEP jacket, e-PTFE dielectric
- >90 dB shield effectiveness
- Tape/foil/braid shield layers
- Low attenuation
- Lightweight, flexible
|
 |

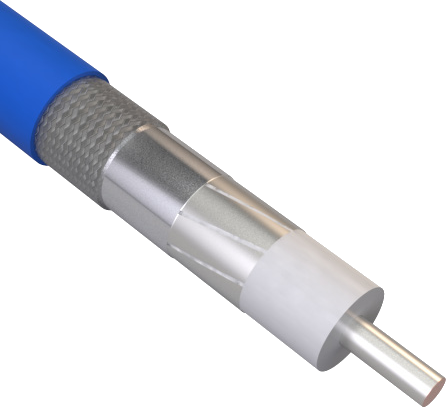

50 ohm. Low loss. Triple shield. 962-009-300 coax cable has expanded PTFE delectric for low attenuation at microwave frequencies. Abrasion resistant and flexible FEP jacket. Three metallic layers for greater than 90 dB of shielding effectiveness: flat SPC (silver-plated copper) tape inner shield, aluminum/polyimide foil interlayer, and round SPC braid outer shield. Solid SPC center conductor.
- J 50 ohm
- 18 GHz
- -55 to +165 °C
- FEP jacket, e-PTFE dielectric
- >90 dB shield effectiveness
- Tape/foil/braid shield layers
- Low attenuation
- Lightweight, flexible
|
 |
50 ohm. Low loss. Triple shield. 962-009-450 coax cable has expanded PTFE delectric for low attenuation at microwave frequencies. Abrasion resistant and flexible FEP jacket. Three metallic layers for greater than 90 dB of shielding effectiveness: flat SPC (silver-plated copper) tape inner shield, aluminum/polyimide foil interlayer, and round SPC braid outer shield. Stranded SPC center conductor.
- 50 ohm
- 10 GHz
- -55 to +165 °C
- FEP jacket, e-PTFE dielectric
- >90 dB shield effectiveness
- Tape/foil/braid shield layers
- Low attenuation
|
 |
50 ohm. Double shield. Low loss. 962-010-405 coax cable is a flexible alternative to RG405 semi-rigid cable. Abrasion resistant blue FEP jacket or radiation resistant space-grade grey ETFE jacket. Two shield layers: flat SPC (silver-plated copper) tape wrap inner shield and round SPC braid outer shield. Solid SPC center conductor.
- 50 ohm
- 40 GHz
- FEP jacket: -55 to +165 °C
- ETFE jacket: -55 to +155 °C
- >90 dB shield effectiveness
- Double shield: braid over tape wrap
- Flexible equivalent to RG405
|
 |
50 ohm. Double shield. Low loss. 962-010-402 coax cable has abrasion resistant FEP jacket or radiation-resistant space-grade ETFE jacket. Two shield layers: flat SPC (silver-plated copper) tape wrap inner shield and round SPC braid outer shield. Solid SPC center conductor.
- J 50 ohm
- 18 GHz
- FEP jacket: -55 to +165 °C
- ETFE jacket: -55 to +155 °C
- >90 dB shield effectiveness
- Double shield: braid over tape wrap
- Flexible replacement for RG402
|
 |
50 ohm. Phase stable. Double shield. 962-011-402 coax cable has LPCF delectric to minimize phase shift caused by temperature change. Less than 250 ppm/°C phase change from -40 to +60 °C. Abrasion resistant, flexible FEP jacket. Two metallic layers for greater than 90 dB of shielding effectiveness: SPC (silver-plated copper) tape wrap inner shield, and round SPC braid outer shield. Solid SPC center conductor.
- 50 ohm
- Low phase change vs. temperature
- 40 GHz
- -55 to +165 °C
- FEP jacket
- LPCF dielectric
- 90 dB shield effectiveness
- Foil/braid shield layers
- Low attenuation
|
 |
50 ohm. Low loss. Triple shield. Lightweight 962-012 coax cable has radiation resistant space-grade ETFE jacket. Expanded PTFE delectric for low attenuation at microwave frequencies. Three metallic layers for greater than 90 dB of shielding effectiveness: flat SPC (silver-plated copper) tape inner shield, aluminum/polyimide foil interlayer, and round SPC braid outer shield. Solid SPC center conductor.
- J 50 ohm
- 26.5 GHz
- -55 to +150 °C
- ETFE jacket, ePTFE dielectric
- >90 dB shield effectiveness
- Tape/foil/braid shield layers
- Low attenuation
|
 |
50 ohm. Low loss. Triple shield. Lightweight 962-012 coax cable has radiation-resistant space-grade ETFE jacket. Expanded PTFE delectric for low attenuation at microwave frequencies. Three metallic layers for greater than 90 dB of shielding effectiveness: flat SPC (silver-plated copper) tape inner shield, aluminum/polyimide foil interlayer, and round SPC braid outer shield. Solid SPC center conductor.
- J 50 ohm
- 18 GHz
- -55 to +150 °C
- ETFE jacket, ePTFE dielectric
- >90 dB shield effectiveness
- Tape/foil/braid shield layers
- Low attenuation
- Lightweight, flexible
|
 |
50 ohm. Double shield. Low loss. 962-029 coax cable has abrasion resistant FEP jacket. Two shield layers: flat SPC (silver-plated copper) tape wrap inner shield and round SPC braid outer shield. Solid SPC center conductor.
- 50 ohm
- 70 GHz
- -65 to +165 °C
- .056" (1.4) diameter
- >90 dB shield effectiveness
- Double shield: braid over tape wrap
|
 |
50 ohm. Low loss. Triple shield. Lightweight 962-016-160 coax cable has radiation-resistant space-grade ETFE jacket. Expanded PTFE delectric for low attenuation at microwave frequencies. Three metallic shield layers: SPC (silver-plated copper) tape inner shield, aluminum/polyimide foil interlayer, and round SPC braid outer shield. Solid SPC center conductor.
- J 50 ohm
- 18 GHz
- -55 to +165 °C
- ETFE jacket, ePTFE dielectric
- >90 dB shield effectiveness
- Braid/foil/braid shield layers
- Low attenuation
|
 |
50 ohm. Phase stable. Double shield. 962-017-402 coax cable has LPCF dielectric to minimize phase shift caused by temperature change. Less than 250 ppm/°C phase change from -40 to +60 °C. Radiation-resistant space-grade ETFE jacket. Two metallic layers for greater than 90 dB of shielding effectiveness: SPC (silver-plated copper) tape inner shield, and round SPC braid outer shield. Solid SPC center conductor.
- J 50 ohm
- 40 GHz
- Low phase change vs. temperature
- -55 to +165 °C
- ETFE jacket
- LPCF dielectric
- 90 dB shield effectiveness
- Two shield layers
- Low attenuation
|
 |

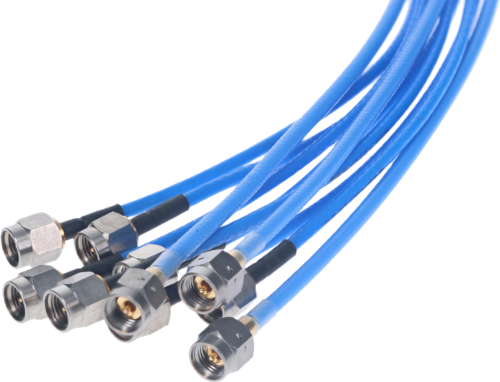

086 Jumper Assembly
Back-to-back jumper has male SMA plug on each end. 50 ohm low loss coax cable has unjacketed tinned copper braid for excellent flexibility. SMA connectors are stainless steel with gold-plated body and passivated coupling nut. Contact is gold-plated copper alloy.
- Operating temperature: -55 °C to +165 °C
- Minimum bend radius: .236 in. (6.0 mm)
- Frequency range: DC – 26.5 GHz
- VSWR: 1.30 maximum
- Impedance: 50 ohm nominal
141 Jumper Assembly
Back-to-back jumper has male SMA plug on each end. 50 ohm low loss coax cable has unjacketed tinned copper braid for excellent flexibility. SMA connectors are stainless steel with gold-plated body and passivated coupling nut.
- Operating temperature: -55 °C to +165 °C
- Minimum bend radius: .394 in. (10.0 mm)
- Frequency range: DC – 26.5 GHz
- VSWR: 1.30 maximum
- Impedance: 50 ohm nominal
|
 |
N-SMA Jumper Assembly
RF cable assembly has male Type N plug on one end and SMA plug on the other end. 50 ohm low loss coax cable has unjacketed tinned copper braid for excellent flexibility. SMA connector is stainless steel with gold-plated body and passivated coupling nut. N connector is nickel-plated brass with gold-plated brass pin contact, PTFE insulator,silicone rubber gasket and SST snap-ring.
- Frequency range: DC – 18 GHz
- VSWR: 1.30 maximum
- Impedance: 50 ohm nominal
N-N Jumper Assembly
RF cable assembly has male Type N plug on both ends. 50 ohm low loss coax cable has unjacketed tinned copper braid for excellent flexibility. N connectors are nickel-plated brass with gold-plated brass pin contact, PTFE insulator, silicone rubber gasket and SST snap-ring.
- Frequency range: DC – 18 GHz
- VSWR: 1.30 maximum
- Impedance: 50 ohm nominal
|
 |
SMA Jumper Assembly
RF cable assembly has male SMA connector on one end and female SMA hermetic jam-nut on the other end. Two 50 ohm cable types, RG174 and RG316, are available. RG174 coax cable has black PVC jacket rated to 85°C and RG316 cable has tan FEP jacket rated to 200°C. SMA connector outer body is stainless steel with passivated finish. Hermetic Jam-nut connector is stainless steel with passivated finish. Center contact is copper alloy and gold plated.
- Frequency range
RG174: DC – 18 GHz RG316: DC – 3 GHz
- VSWR: 1.30:1 maximum
- Impedance: 50 ohm nominal
|
Multi-Port RF Rectangular Connectors
Series 795
Series 795 connectors accommodate up to nine size 8 BMB-style coax contacts. Contacts snap into connector body and are removable. Environmentally protected with fluorosilicone face seal and rear grommet. One piece connector shell provides a common ground plane and also eliminates EMI radiation through the connector.
Panel mount receptacle has conductive fluorosilicone O-ring for ingress protection. #8-32 jackscrews provide secure mating in high vibration environments.
 |

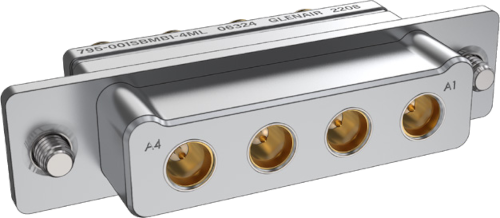

Two to nine ports. Size 8 contacts. 795-001 plugs have machined aluminum housings and fluorosilicone grommet for environmental protection. Size 8 socket contact cavities have beryllium copper retention clips. Use with 18 GHz BMB coax contacts (P/N 852-152, ordered separately) or 18 GHz G-LinkRF BMB/SMA coax contacts (852-256, ordered separately).
- Size #8 Contacts
- All-Aluminum Body
- Two to Nine Ports
- 18 GHz BMB Coax
- Environmental
- Scoop-Proof
|
 |

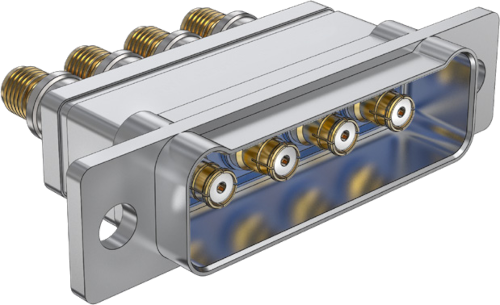

Two to nine ports. Size 8 contacts. 795-002 receptacles have one piece 6061-T6 machined aluminum housings. Fluorosilicone face seal and rear grommet provide environmental protection. Size 8 pin contact cavities have beryllium copper retention clips. Use with 18 GHz BMB coax contacts (P/N 852-153, sold separately) or 18 GHz G-LinkRF BMB/SMA coax contacts (852-257, sold separately).
- Size #8 Contacts
- All-Aluminum Body
- Two to Nine Ports
- 18 GHz BMB Coax
- Environmental
- Scoop-Proof
|
 |

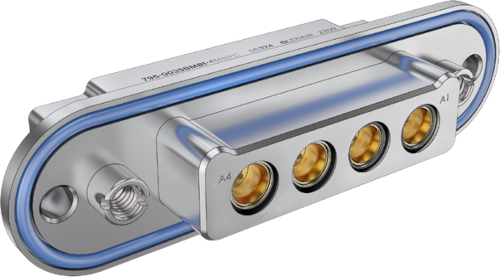

Size 8 contacts. 795-003 panel mount plugs accomodate from two to nine coax socket contacts. Environmentally protected with O-ring and rear grommet. Housing is 6061-T6 machined aluminum. Size 8 socket contact cavities have beryllium copper retention clips. Use with 18 GHz BMB coax contacts (P/N 852-152, ordered separately) or 18 GHz G-LinkRF BMB/SMA coax contacts (852-256, ordered separately).
- Size #8 Contacts
- All-Aluminum Body
- Two to Nine Ports
- 18 GHz BMB Coax
- Environmental
- Scoop-Proof
|
 |

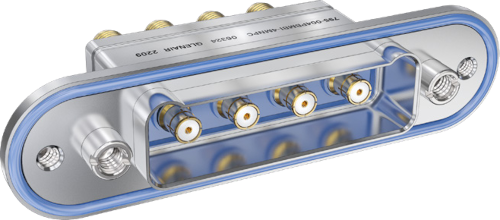

Size 8 contacts. 795-004 panel mount receptacles accomodate from two to nine coax contacts. Environmentally protected with O-ring, fluorosilicone face seal and rear grommet. Housing is 6061-T6 machined aluminum. Size 8 socket contact cavities have beryllium copper retention clips. Use with 18 GHz BMB coax contacts (P/N 852-152, ordered separately) or 18 GHz G-LinkRF BMB/SMA coax contacts (852-252, ordered separately).
- Size #8 Contacts
- All-Aluminum Body
- Two to Nine Ports
- 18 GHz Coax
- Environmental
- Scoop-Proof
|
 |

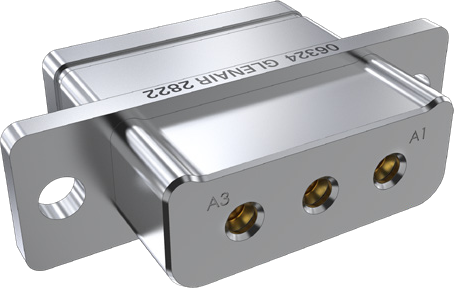

Three to eleven ports. Size 12 contacts. 795-005 plugs have machined aluminum housings and fluorosilicone grommet for environmental protection. Size 12 socket contact cavities have beryllium copper retention clips. Use with 40 GHz SMPM coax contacts (P/N 852-100, ordered separately).
- Size #12 Contacts
- All-Aluminum Body
- Three to Eleven Ports
- 40 GHz SMPM Coax
- Environmental
- Scoop-Proof
|
 |

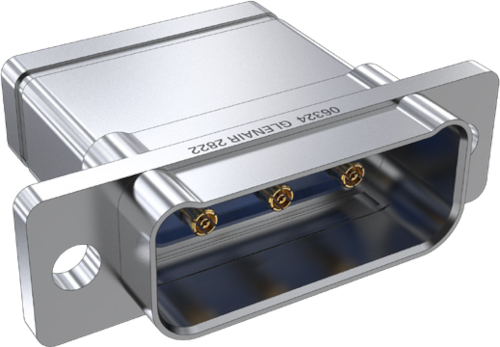

Three to eleven ports. Size 12 contacts. 795-006 receptacles have machined aluminum housings and fluorosilicone grommet for environmental protection. Size 12 pin contact cavities have beryllium copper retention clips. Use with 40 GHz SMPM coax contacts (P/N 852-099, ordered separately).
- Size #12 Contacts
- All-Aluminum Body
- Three to Eleven Ports
- 40 GHz SMPM Coax
- Environmental
- Scoop-Proof
|
 |

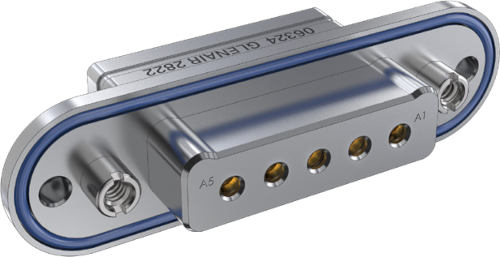

Size 8 contacts. 795-007 panel mount plugs accommodate from three to eleven coax socket contacts. Environmentally protected with O-ring and rear grommet. Housing is 6061-T6 machined aluminum. Size 12 socket contact cavities have beryllium copper retention clips. Use with SMPM coax contacts (P/N 852-100, ordered separately).
- Size #12 Contacts
- All-Aluminum Body
- Three to Eleven Ports
- 40 GHz SMPM Coax
- Environmental
- Scoop-Proof
|
 |

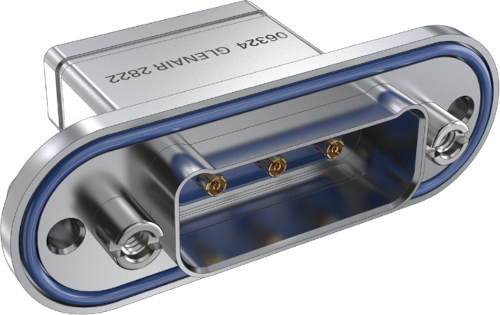

Three to eleven ports. Size 12 contacts. 795-008 receptacles have machined aluminum housings and fluorosilicone grommet for environmental protection. Size 12 pin contact cavities have beryllium copper retention clips. Use with 40 GHz SMPM coax contacts (P/N 852-099, ordered separately).
- Size #12 Contacts
- All-Aluminum Body
- Three to Eleven Ports
- 40 GHz SMPM Coax
- Environmental
- Scoop-Proof
|
 |

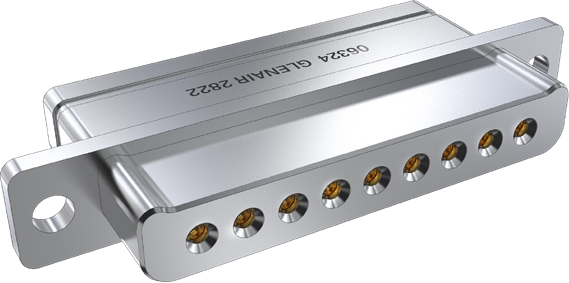

Three to eleven ports. Size 16 contacts. 795-009 plugs have machined aluminum housings and fluorosilicone grommet for environmental protection. Size 16 socket contact cavities have beryllium copper retention clips. Use with 65 GHz SMPS coax contacts (P/N 852-159, ordered separately).
- Size #16 Contacts
- All-Aluminum Body
- Two to Seventeen Ports
- 65 GHz SMPS Coax
- Environmental
- Scoop-Proof
|
 |

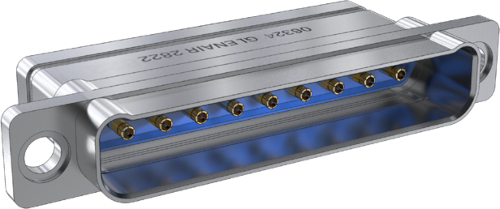

Three to eleven ports. Size 16 contacts. 795-010 receptacles have machined aluminum housings and fluorosilicone grommet for environmental protection. Size 16 pin contact cavities have beryllium copper retention clips. Use with 65 GHz SMPS coax contacts (P/N 852-133, ordered separately).
- Size #16 Contacts
- All-Aluminum Body
- Two to Seventeen Ports
- 65 GHz SMPS Coax
- Environmental
- Scoop-Proof
|
 |

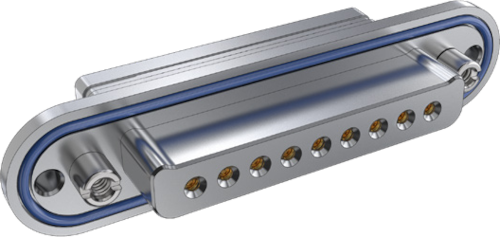

Three to eleven ports. Size 16 contacts. 795-011 plugs have machined aluminum housings and fluorosilicone grommet for environmental protection. Size 16 socket contact cavities have beryllium copper retention clips. Use with 65 GHz SMPS coax contacts (P/N 852-159, ordered separately).
- Size #16 Contacts
- All-Aluminum Body
- Two to Seventeen Ports
- 65 GHz SMPS Coax
- Environmental
- Scoop-Proof
|
 |

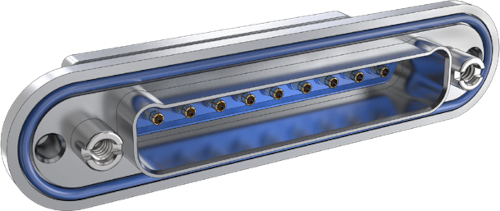

Three to eleven ports. Size 16 contacts. 795-012 receptacles have machined aluminum housings and fluorosilicone grommet for environmental protection. Size 16 pin contact cavities have beryllium copper retention clips. Use with 65 GHz SMPS coax contacts (P/N 852-133, ordered separately).
- Size #16 Contacts
- All-Aluminum Body
- Two to Seventeen Ports
- 65 GHz SMPS Coax
- Environmental
- Scoop-Proof
|

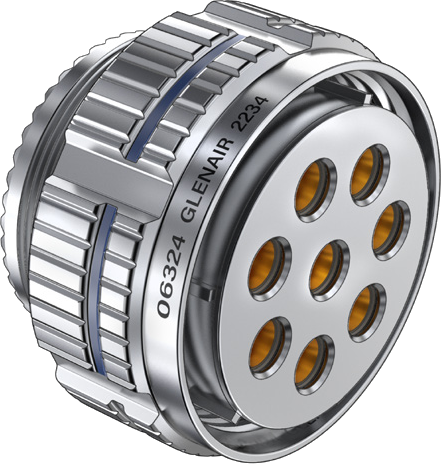

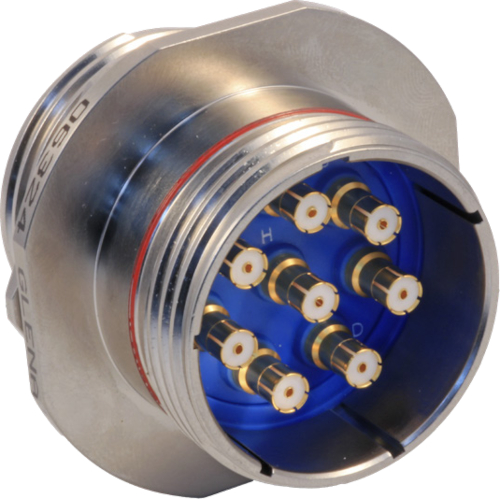

SuperNine Multi-Port RF Circular Connectors
One to 29 contacts, Size 8, 12, or 16.

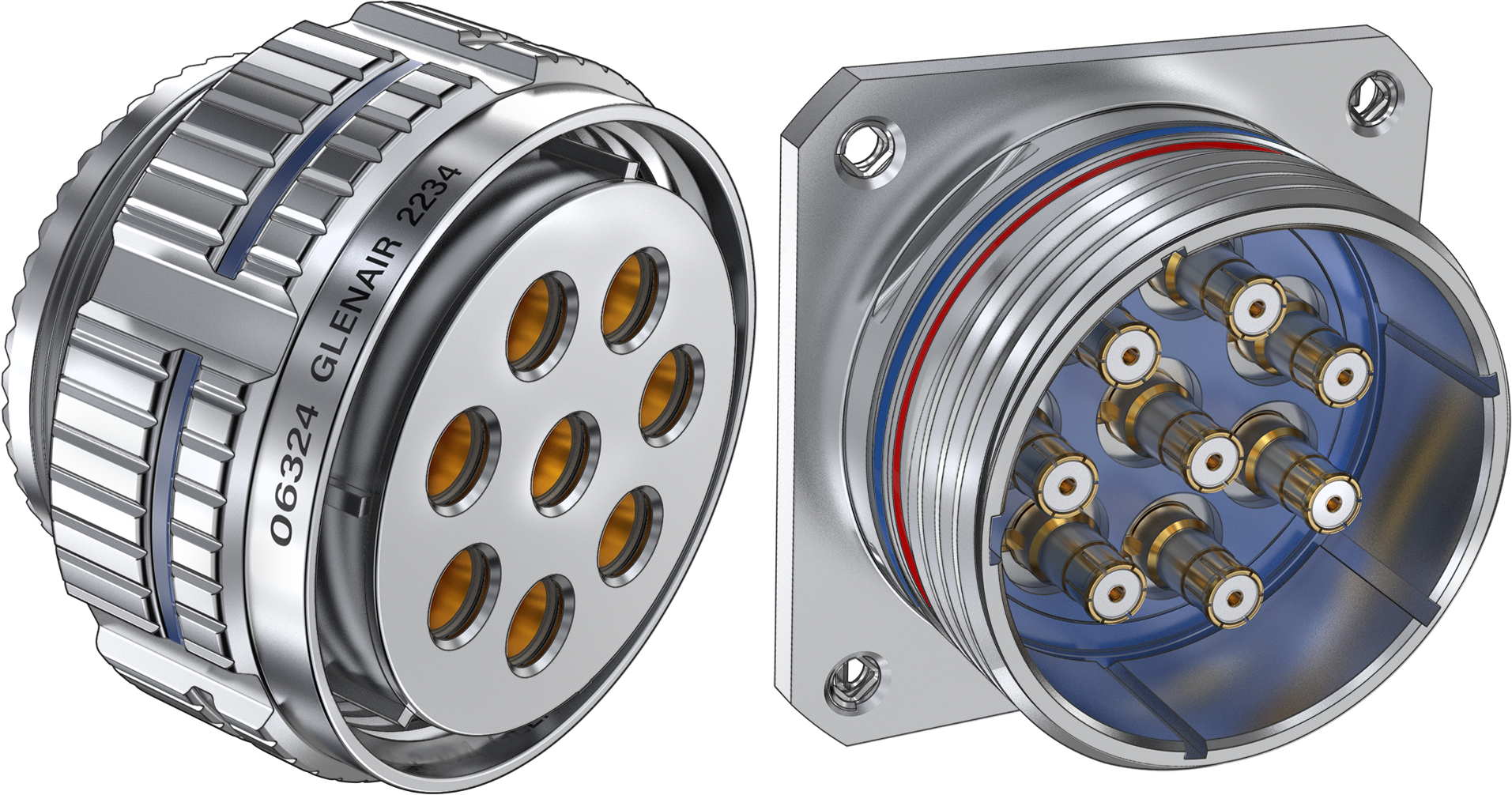

233-290 connectors have machined aluminum or stainless steel shells and fluorosilicone grommet for environmental protection. Plugs feature a copper alloy ground spring for EMI protection. Fifteen contact layouts available in eight different shell sizes. Supplied without contacts, order #8 BMB, #12 SMPM, or #16 SMPS contacts separately.
 |
SuperNine RF Connector
- 233-290-G6
Plug, EMI Spring (Socket Contacts)
- 233-290-05
In-Line Receptacle (Pin Contacts)
- 233-290-CS
Wall Mount Receptacle, Standard Clinch Nuts (Pin Contacts)
- 233-290-HS
Wall Mount Receptacle, Standard Helicoils (Pin Contacts)
- 233-290-00
Wall-Mount Receptacle (Pin Contacts)
- 233-290-07
Jam Nut Receptacle (Pin Contacts)
- 233-290-CM
Wall Mount Receptacle, Metric Clinch Nuts (Pin Contacts)
- 233-290-HM
Wall Mount Receptacle, Metric Helicoils (Pin Contacts)
|
Multi-Port RF Circular Connectors
Series 806
One to 29 contacts, Size 8, 12, or 16.

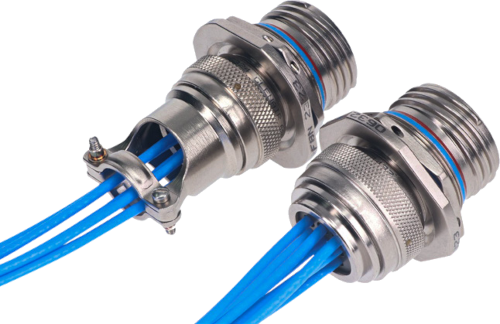

Series 806 RF connectors have machined aluminum or stainless steel shells and fluorosilicone grommet for environmental protection. Plugs feature a copper alloy ground spring for EMI protection. Eighteen contact layouts available in eleven different shell sizes. Supplied without contacts, order #8 BMB, #12 SMPM, or #16 SMPS contacts separately.
 |
Series 806 RF Plug (Socket Connector Less Contacts)
|
 |
Series 806 RF Wall-Mt. Receptacle (Pin Connector Less Contacts)
|
 |
Series 806 RF In-Line Receptacle (Pin Connector Less Contacts)
|
 |
Series 806 RF Jam-Nut Receptacle (Pin Connector Less Contacts)
|
 |

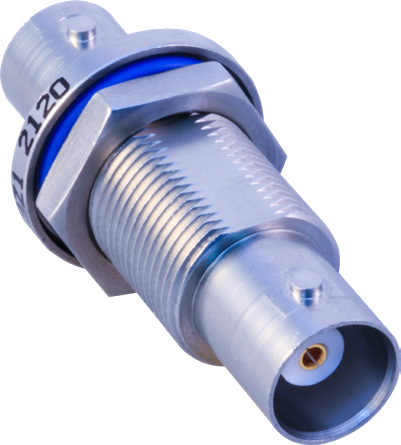

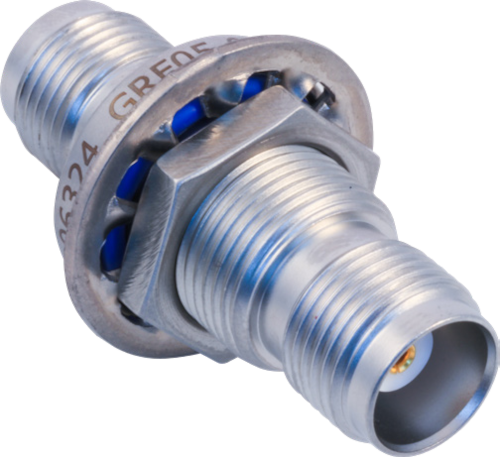

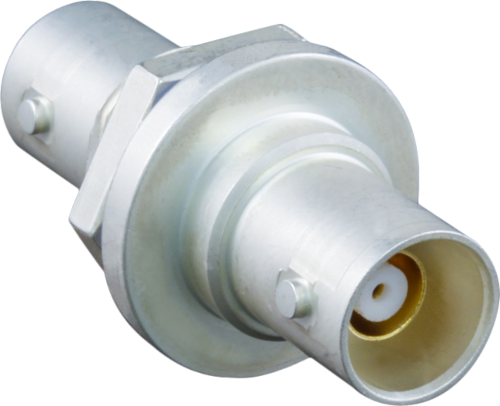

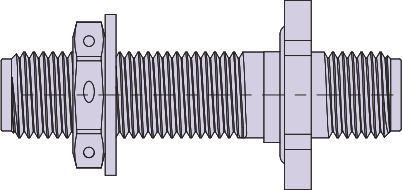

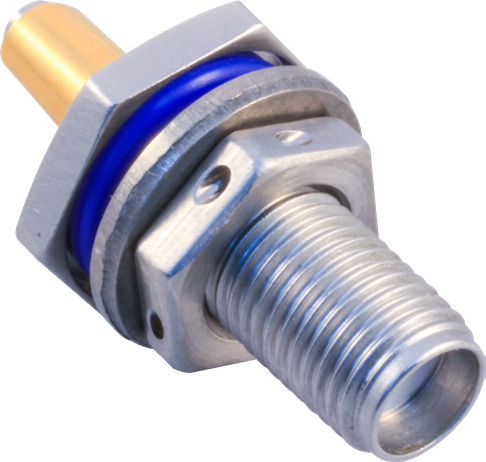

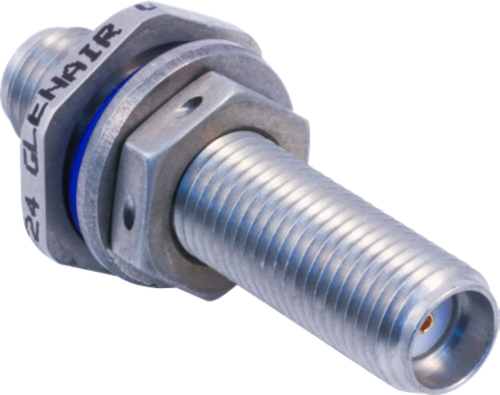

Series 806 RF Hermetic Feed-Thru
- 806-083-02
Hermetic Bulkhead Feed-Thru, Panel Mount
- 806-083-07
Hermetic Bulkhead Feed-Thru, Jam Nut Mount
- 806-083-13
Hermetic Bulkhead Feed-Thru, Weld Mount
|
Modular High-Speed Micro-D Connectors
Series GMMD
The Series GMMD is an innovative modular Micro-D connector for RF coax and high-speed differential datalink applications. The unique micro miniature design of the GMMD also accommodates standard analog signal and power contacts, making it the most versatile Micro-D rectangular in the industry. GMMD leverages RF Coax contacts with Glenair Signature Micro-D and Nano TwistPin contact inserts. GMMD is supplied as factory-terminated pigtails, point-to-point jumpers, and SMT receptacles for easy PCB mounting.
 |
- One of the smallest rugged multiway RF coax connectors available
- 50Ω on 3.18mm pitch for combo arrangements
- 50Ω on 2.54 pitch for coax-only arrangements
- Shield isolated from connector shell
- PCB edge-launched for optimized 20GHz high-bandwidth performance
- Compatible with RG-178, semi-rigid and flexible 047 cables for 50Ω / RG-179 and semi-rigid cables for 75Ω
|
 |
Back-to-back Coax cable assemblies provide a turnkey solution for easy on-site installation. Assemblies are supplied with GMMD plug or receptacle on each end in a choice of any coax or combo contact arrangement. Environmental seal options are available for plug connectors. 50Ω and 75Ω Coax cable may be ordered in flexible or semi-rigid configurations, standard M22759/33 signal cable in 24 – 30 AWG. EMI shielded with five optional braid materials, including Glenair Signature weight-saving composite microfilament AmberStrand or microfilament stainless steel ArmorLite. Outer jacket options available for environmental and abrasion protection. Integral backshells, hardware, and wire exit direction all fully customizable.
- Plug-to-Plug
- Plug-to-Receptacle
- Receptacle-to-Receptacle
|
RF Connector Adapters
Series 852
Precision-grade Series 852 RF Adapters are used to connect between series or within a series. Frequently used as connector savers, male-female adapters protect RF jacks on instruments from excessive wear-and-tear. 45° and 90° angled SMA male-female adapters provide extra clearance in cramped quarters.
 |
Connect TNC jack to SMA plug with 852-160 adapter. Stainless steel body with gold-plated BeCu contact, PTFE insulator, nickel-plated phos bronze lock ring, and silicone gasket.
TNC–SMA Adapter
- Operating temperature: -45 °C to +125 °C
- Frequency range: DC – 18 GHz
- VSWR: 1.20 maximum
- Impedance: 50 ohm
|
 |
Connect TNC plug to SMA plug with 852-161 adapter. Stainless steel body, gold-plated BeCu contact, PTFE insulator.
TNC–SMA Adapter
- Operating temperature: -45 °C to +125 °C
- Frequency range: DC – 18 GHz
- VSWR: 1.20 maximum
- Impedance: 50 ohm
|
 |
4 Hole Flange. Connect TNC plug to SMA plug with 852-162 adapter. Stainless steel body, gold-plated BeCu contact, PTFE insulator.
TNC–SMA Adapter
- Operating temperature: -45 °C to +125 °C
- Frequency range: DC – 18 GHz
- VSWR: 1.20 maximum
- Impedance: 50 ohm
|
 |
Jam nut panel mounting. Connect TNC plug to SMA plug with 852-163 adapter. Stainless steel body and hex nut. Gold-plated BeCu contact. Nickel-plated brass lock washer, PTFE insulator, silicone O-ring.
TNC–SMA Adapter
- Operating temperature: -45 °C to +125 °C
- Frequency range: DC – 18 GHz
- VSWR: 1.20 maximum
- Impedance: 50 ohm
|
 |
Connect N jack to SMA plug with 852-164 adapter. Stainless steel body with gold-plated BeCu contact, PTFE insulator, nickel-plated phos bronze lock ring, and silicone gasket.
N–SMA Adapter
- Operating temperature: -55 °C to +165 °C
- Frequency range: DC – 18 GHz
- VSWR: 1.20 maximum
- Impedance: 50 ohm
|
 |
Connect N plug to SMA plug with 852-165 adapter. Stainless steel body, gold-plated BeCu contact, PTFE insulator.
N–SMA Adapter
- Frequency range: DC – 18 GHz
- VSWR: 1.20 maximum
- Impedance: 50 ohm
|
 |
Connect N plug to SMA plug with 852-166 panel mount adapter. Nickel-plated brass body and hex nut. Gold-plated BeCu contact. Stainless steel lock washer, PTFE insulator, silicone O-ring.
N–SMA Adapter
- Operating temperature: -45 °C to +125 °C
- Frequency range: DC – 18 GHz
- VSWR: 1.20 maximum
- Impedance: 50 ohm
|
 |
Connect N plug to SMA plug with 852-167 panel mount adapter. Stainless steel body, gold-plated BeCu contact, PTFE insulator.
N–SMA Adapter
- Operating temperature: -45 °C to +125 °C
- Frequency range: DC – 18 GHz
- VSWR: 1.20 maximum
- Impedance: 50 ohm
|
 |
852-168 connector saver adapter protects equipment from wear and tear. Stainless steel body and coupling nut, gold-plated BeCu contact, PTFE insulator, stainless steel lock ring and silicone gasket.
SMA–SMA Adapter
- Frequency range: DC – 18 GHz
- VSWR: 1.15 maximum
- Impedance: 50 ohm
|
 |
852-169 gender changer adapter connects two SMA plugs. Stainless steel body, gold-plated BeCu contact, PTFE insulator.
SMA–SMA Adapter
- Frequency range: DC – 18 GHz
- VSWR: 1.15 maximum
- Impedance: 50 ohm
|
 |
Jam nut panel mount. 852-170 adapter connects two SMA plugs. Stainless steel body, hex nut and lockwasher. Gold-plated BeCu contact, PTFE insulator, silicone O-ring.
SMA–SMA Adapter
- Frequency range: DC – 18 GHz
- VSWR: 1.15 maximum
- Impedance: 50 ohm
|
 |
45°. 852-183 adapter has low profile coupling nut for increased clearance. Gold-plated BeCu contact. Passivated stainless steel body and coupling nut, PTFE insulator, silicone O-ring and gasket, BeCu lock ring.
SMA–SMA Adapter
- Operating temperature: -45 °C to +125 °C
- Frequency range: DC – 18 GHz
- VSWR: 1.30 maximum
- Impedance: 50 ohm
|
 |
852-182 90° adapter connects female SMA to male SMA. Available in six lengths. Stainless steel body and coupling nut. Gold-plated BeCu contact, PTFE insulator, BeCu lock ring. Silicone gasket and O-ring.
SMA–SMA Adapter
- Operating temperature: -45 °C to +125 °C
- Frequency range: DC – 18 GHz
- VSWR: 1.30 maximum
- Impedance: 50 ohm
|
 |
852-171 adapter connects 2.92mm female to SMA male. Stainless steel body, coupling nut and lock ring. Gold-plated BeCu contact, PTFE insulator, silicone gasket.
2.92–SMA Adapter
- Frequency range: DC – 18 GHz
- VSWR: 1.15 maximum
- Impedance: 50 ohm
|
 |
852-172 adapter connects 2.92mm male to SMA male. Stainless steel body, gold-plated BeCu contact, PTFE insulator.
2.92–SMA Adapter
- Frequency range: DC – 18 GHz
- VSWR: 1.15 maximum
- Impedance: 50 ohm
|
 |
SMP Male / SMA Female. 852-173 adapter has full detent SMP male connector interface. Stainless steel body, gold-plated BeCu contact, PTFE insulator.
SMP–SMA Adapter
- Frequency range: DC – 26.5 GHz
- VSWR: 1.20 maximum
- Impedance: 50 ohm
|
 |
852-174 adapter has smooth bore SMP male connector interface. Stainless steel body, gold-plated BeCu contact, PTFE insulator.
SMP–SMA Adapter
- Frequency range: DC – 26.5 GHz
- VSWR: 1.20 maximum
- Impedance: 50 ohm
|
 |
852-175 adapter connects male SMP to male SMA connector. Stainless steel body, gold-plated BeCu contact, PTFE insulator. Gold-plated BeCu anti-rock ring.
SMP–SMA Adapter
- Frequency range: DC – 26.5 GHz
- VSWR: 1.20 maximum
- Impedance: 50 ohm
|
 |
BNC Male / SMA Female. 852-189 adapter connects female BNC to SMA male connector. Stainless steel SMA body, nickel-plated brass BNC body and coupling nut. Gold-plated BeCu contact, PTFE insulator, nickel-plated brass wave washer. Silicone gasket.
BNC–SMA Adapter
- Operating temperature: -40 °C to +120 °C
- Frequency range: DC – 4 GHz
- VSWR: 1.20 maximum
- Impedance: 50 ohm
|
RF Connector Accessories
Series 852
RF connector accessories include Protective Covers and Dummy Receptacles for standard RF coax connectors.
Aluminum or stainless steel Covers have sealing gaskets and a variety of attachment styles.
Panel-mounted Dummy Receptacles provide stowage and protection for RF cables.
 |

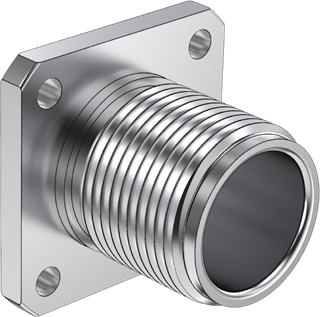

Use dummy stowage receptacle to secure and protect unused plugs. 650-072 receptacle accommodates Type HN coaxial plug connectors. Aluminum, stainless steel or brass.
|
 |

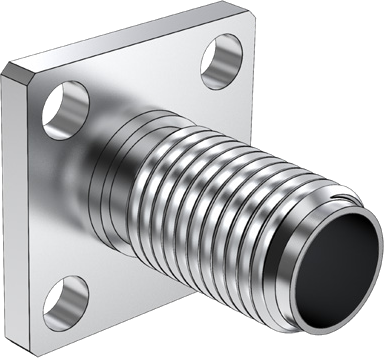

Use dummy stowage receptacle to secure and protect unused plugs. 650-073 receptacle accommodates M39012 Series SMA connectors. Aluminum, stainless steel or brass.
|
 |

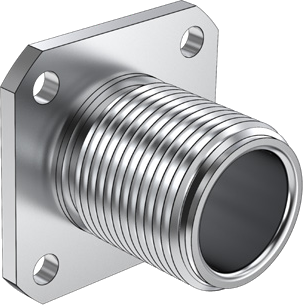

Use dummy stowage receptacle to secure and protect unused plugs. 650-074 receptacle accommodates Type N RF connectors. Aluminum, stainless steel or brass.
|
 |

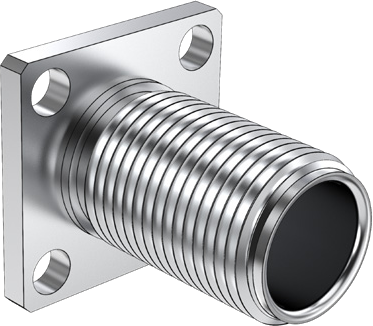

Use dummy stowage receptacle to secure and protect unused plugs. 650-075 receptacle accommodates M39012 Series TNC RF connectors. Aluminum, stainless steel or brass.
|
 |

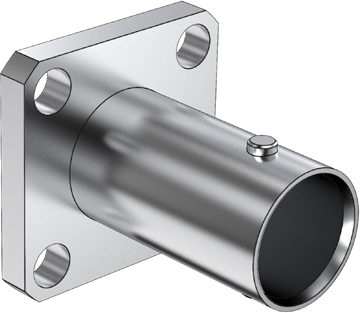

Use dummy stowage receptacle to secure and protect unused plugs. 650-076 receptacle accommodates M39012 Series BNC RF connectors. Aluminum, stainless steel or brass.
|
 |

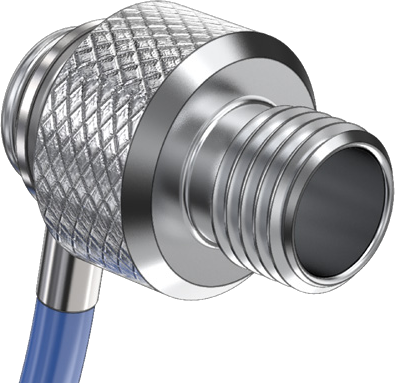

660-103 protective cover fits SMA plug connectors. Aluminum or stainless steel, with stainless steel fittings. Silicone gasket.
|
 |

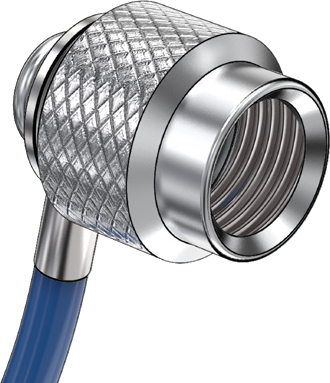

660-103 protective cover fits SMA plug connectors. Aluminum, stainless steel, or composite. Stainless steel fittings. Silicone gasket.
|
 |
660-105 protective cover fits type N plug connectors. Aluminum or stainless steel, with stainless steel fittings. Silicone gasket.
|
 |

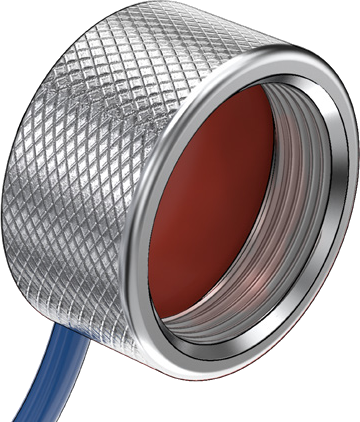

660-106 protective cover fits type N plug connectors. Aluminum or stainless steel, with stainless steel fittings. Silicone gasket.
|
 |

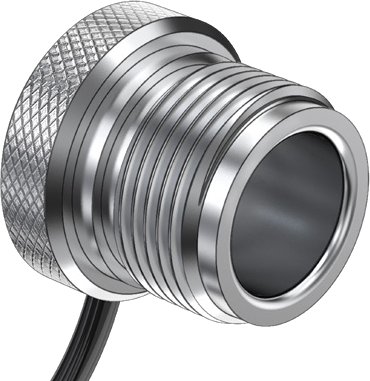

660-107 protective cover fits TNC plug connectors. Aluminum or stainless steel, with stainless steel fittings. Silicone gasket.
|
 |
660-106 protective cover fits type N plug connectors. Aluminum or stainless steel, with stainless steel fittings. Silicone gasket.
|
 |

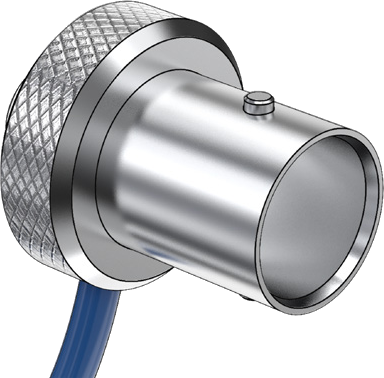

660-109 protective cover fits BNC plug connectors. Aluminum or stainless steel, with stainless steel fittings. Silicone gasket.
|
 |

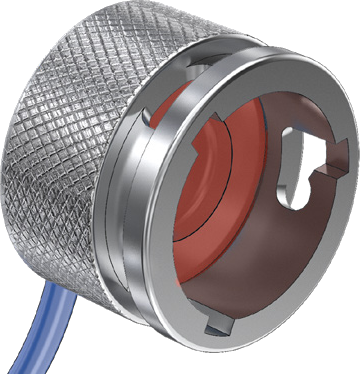

660-110 protective cover fits BNC receptacle connectors. Aluminum or stainless steel, with stainless steel fittings. Silicone gasket.
|
