Fiber Optic Termination and Inspection Tools, Kits, and Accessories

The right fiber optic tool for the job. Industry-standard and Glenair signature installation and maintenance tooling, workstations, and kits for factory and field fiber optic termination and troubleshooting.

Our fiber optic termination kits, inspection tools, and cleaning supplies allow both lab and field technicians to complete reliable assembly of fiber optic systems. Our termination kits, for example, are equipped with all of the necessary tools — pin and socket polishing tools, jacket strippers, shears, scribes — literally every device required for ongoing termination and test of fiber optic systems. The same holds true for our test probe, inspection and cleaning tools.

Fiber Optic Cable Preparation and Termination — The Right Fiber Optic Tool for the Job

Fiber optic connectors are designed to be connected and disconnected many times without affecting the optical performance of the fiber circuit. Optimal performance can be achieved by following the correct process for termination of the fiber circuit—a task which requires the use of a wide range of specialized tooling. Glenair's extensive experience in building fiber optic interconnect cables has enabled us to select the right tools for each step in the termination and assembly process. Our Fiber Optic Termination and Test Probe Kits allow field technicians the convenience of completing final termination of precision termini on location for easy and efficient cable routing and installation. Each kit contains pin and socket polishing tools, jacket strippers, shears, scribes — literally all the tools and supplies required for ongoing termination and test of fiber optic systems. Polishing tools are also sold separately for factory use or as replacement parts in field termination kits.

Kits contain pin and socket polishing tools, jacket strippers, shears, scribes
GFKR for 181-001 & 181-002 (MIL-PRF-29504/4 and /5) Termini and 181-011 & 181-012 (GFR) Termini
Inspection and testing instructions offer solution to optical test and measurement

Reference

Product Datasheet

Fiber Optic Connection System / Termination, Inspection, and Troubleshooting Tools and Kits

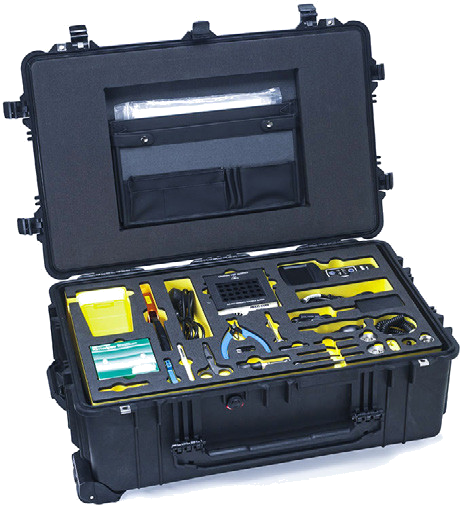

	GFKR for 181-001 & 181-002 Termini and GFR 181-011 & 181-012 Termini Termination Kit For Field Termination and Repair of Optical Interconnects

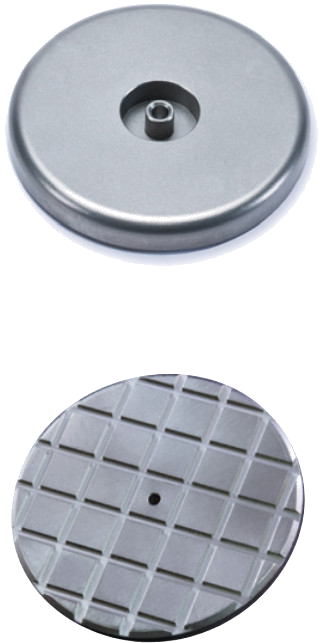

	Fiber Optic Polishing Pucks Add W to part number for Wet Polish, Supplied with Grooves. Omit for Dry Polish, Less Grooves M29504 Type (MIL-DTL-38999 Series III Type) Termini
	Fiber Optic Inspection and Testing Patented Optical test and Measurement System Specified by Advanced Military Aircraft Programs
	Fiber Optic Terminus Insertion and Extraction Tools Alignment Sleeve Insertion and Extraction Tool for D38999 Type Fiber Optic Termini

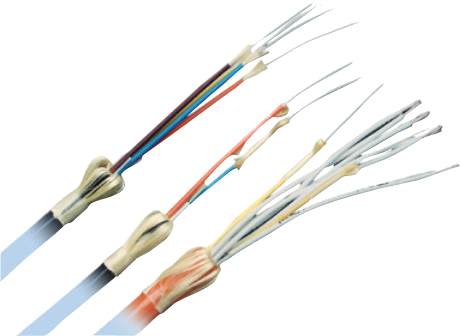

	Bulk Simplex Fiber Optic Cable All Glenair fiber optic connection systems are supported with a complete range of bulk simplex cable choices including stepped and graded-index configurations as well as radiation and atomic oxygen resistant configurations for satellite applications.

MIL-DTL-38999
Kits, Tools, and Accessories

	GTK1000 Glenair Fiber Optic Testing Kit for MIL-DTL-38999 Series III Fiber Optic Connection Systems Fiber Optic Testing Kit for Fiber Optic Connection Systems Traditional optical test harnesses are expensive and easily contaminated in normal use. The Glenair fiber optic testing kit utilizes a special probe device in conjunction with our precise-mating test adapter, to provide a complete solution to optical test and measurement. The GTK-1000 comes with a power meter, source meter, test probes and a test probe calibration adapter. For accurate results, the test probe calibration adapter will "zero out" your meters. The Glenair patented test probe design provides less than 1.0 dB insertion loss, and is used with test probe adapters and a calibration feedthrough to perform efficient measurements of fiber optic cable performance. The kit accommodates all standard fiber sizes and multiple fiber optic connection systems.
	ABC 54705 Replacement Fiber Optic Test Probe Jumper Fiber Optic Test Probe for Fast and Easy Optical Analysis of Installed Fiber Optic Systems

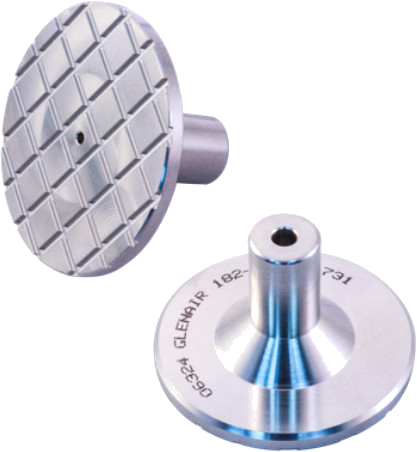

	182-002 Fiber Optic Polishing Tool for Fiber Optic Test Probes W = Wet Polish Supplied with V-Grooves (Omit for Dry Polish)
	180-043 180-049 180-050 Test Probe Calibration (Zeroing) Adapters for M29504/04 or /05 Termini
	180-044 (06) Fiber Optic Test Adapter, Plug MIL-DTL-38999 Series III
	180-044 (07) Fiber Optic Test Adapter, Receptacle MIL-DTL-38999 Series III
	180-072 (06) Fiber Optic Test Adapter, Plug MIL-DTL-38999 Series I
	180-072 (07) Fiber Optic Test Adapter, Receptacle MIL-DTL-38999 Series I
	180-073 (06) Fiber Optic Test Adapter, Plug MIL-DTL-38999 Series III
	180-073 (07) Fiber Optic Test Adapter, Receptacle MIL-DTL-38999 Series III

GHD Fiber Optic Connection Systems
Kits, Tools, and Accessories

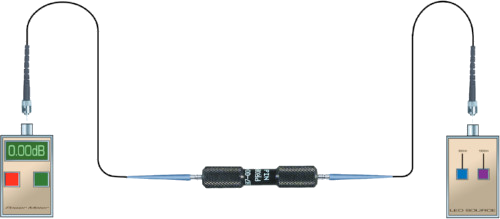

	GTK2000 Glenair Fiber Optic Testing Kit Fiber Optic Testing Kit for Fiber Optic Connection Systems Traditional optical test harnesses are expensive and easily contaminated in normal use. The Glenair fiber optic testing kit utilizes a special probe device in conjunction with our precise-mating test adapter, to provide a complete solution to optical test and measurement. The GTK-2000 comes with a power meter, source meter, test probes and a test probe calibration adapter. For accurate results, the test probe calibration adapterwill "zero out" your meters. GHD Fiber Optic Connection Systems
	FO04309 GHD Fiber Optic Test Probe Keyed Jumper Assembly 182-018 — Fiber Optic Polishing Tool for GHD Style Termini Fiber Optic Test Probes
	FA00861 GHD Fiber Optic Test Probe Keyed Jumper Assembly 182-018 — Fiber Optic Polishing Tool for GHD Style Termini Fiber Optic Test Probes
	180-154 180-173 Calibration (zeroing) Adapters 154 = Probe-to-Probe Adapter, Non-Keyed 173 = Probe-to-Probe Adapter, Keyed GHD Fiber Optic Connectors
	180-131 Fiber Optic Test Adapter, Plug and Receptacle GHD High-Density Insert Arrangement

ARINC 801 Fiber Optic Connection Systems
Kits, Tools, and Accessories

	GTK3000 Glenair Fiber Optic Testing Kit Traditional optical test harnesses are expensive and easily contaminated in normal use. The Glenair fiber optic testing kit utilizes a special probe device in conjunction with our precise-mating test adapter, to provide a complete solution to optical test and measurement. The GTK-3000 comes with a power meter, source meter, test probes and a test probe calibration adapter. For accurate results, the test probe calibration adapter will "zero out" your meters. The Glenair patented test probe design provides less than 1.0 dB insertion loss, and is used with test probe adapters and a calibration feedthrough to perform efficient measurements of fiber optic cable performance. The kit accommodates all standard fiber sizes and multiple fiber optic connection systems. ARINC 801 Fiber Optic Connection Systems
	FO04309 ARINC801 Fiber Optic Test Probe Keyed Jumper Assembly 182-054 Fiber Optic Polishing Tool for NGCON Style Termini Fiber Optic Test Probes
	FA00861 ARINC801 Fiber Optic Test Probe Non-Keyed Jumper Assembly 182-054 Fiber Optic Polishing Tool for ARINC 801 Style Termini Fiber Optic Test Probes
	180-154 180-173 Calibration (zeroing) Adapters for ARINC 801 Fiber Optic Connectors 154 = Probe-to-Probe Adapter, Non-Keyed 173 = Probe-to-Probe Adapter, Keyed
	187-214 Fiber Optic Test Adapter, Plug, and Receptacle for ARINC 801 Fiber Optic Connectors 06 = Plug Adapter 07 = Receptacle Adapter

NGCON Fiber Optic Connection Systems
Kits, Tools, and Accessories

	GTK4000 Glenair Fiber Optic Testing Kit for NGCON Fiber Optic Connection Systems Traditional optical test harnesses are expensive and easily contaminated in normal use. The Glenair fiber optic testing kit utilizes a special probe device in conjunction with our precise-mating test adapter, to provide a complete solution to optical test and measurement. The GTK4000 comes with a power meter, source meter, test probes and a test probe calibration adapter. For accurate results, the test probe calibration adapter will "zero out" your meters. The Glenair patented test probe design provides less than 1.0 dB insertion loss, and is used with test probe adapters and a calibration feedthrough to perform efficient measurements of fiber optic cable performance. The kit accommodates all standard fiber sizes and multiple fiber optic connection systems.
	FO04309 NGCON Fiber Optic Test Probe Keyed Jumper Assembly 182-054 Fiber Optic Polishing Tool for NGCON Style Termini Fiber Optic Test Probes Fiber Optic Test Probe for Fast and Easy Optical Analysis of Installed Fiber Optic Systems
	FA00861 NGCON Fiber Optic Test Probe Non-Keyed Jumper Assembly 182-054 Fiber Optic Polishing Tool for NGCON Style Termini Fiber Optic Test Probes Fiber Optic Test Probe for Fast and Easy Optical Analysis of Installed Fiber Optic Systems
	180-173 180-154 Test Probe Calibration (Zeroing) Adapters for MIL-PRF-64266 (NGCON) Fiber Optic Connectors 173 = Probe-to-Probe Adapter 154 = Probe-to-Probe Adapter
	180-134 Fiber Optic Test Adapter, Plug and Receptacle for NGCON (M64266 Style) Fiber Optic Connectors 06 = Plug Adapter 05 = Receptacle Adapter
	180-102 Fiber Optic Probe Adapter, Plug and Receptacle for NGCON Fiber Optic Connectors Fiber Optic Plug and Receptacle Probe Adapter for use with 180-071 Connectors 06 = Plug Adapter 07 = Receptacle Adapter

Fiber Optic Patch Cords
Kits, Tools, and Accessories

FO1006
Simplex

Fiber Optic Patch Cord

FO1007
Duplex

Fiber Optic Patch Cord

Cleaning and Troubleshooting Instructions for Critical Fiber Optic Systems

Dirty termini can seriously degrade the performance of any fiber optic system. Glenair stocks a full range of cleaning tools and supplies, plus a portable video bore scope inspection kit that contains a miniature inspection camera, hand-held video monitor, termini adapters and cleaning swabs. Designed for use with Glenair test probe adapters, the special adapter tip accurately aligns the inspection camera for optimum viewing. This video inspection system is intended for initial inspection and cleaning of D38999 multi-channel fiber assemblies prior to inserting Glenair test probes for optical measurement.

Overview
Cleaning and Troubleshooting Instructions for Critical Fiber Optic Systems
Glenair Fiber Optic Custom Tooling Request [ download PDF format ]

Low insertion loss genderless termini.
Ø 2.5 mm ceramic ferrules and alignment sleeves.
4 channel singlemode and multimode configurations.
Designed to meet the interface requirements of MIL-PRF 29504/16 and /17 and MIL-DTL-83526/16 and /17 (draft revisions).
Discrete components or complete cable-on-reel solutions available.

Glenair Dry Action Cleaning Tools are easy-to-handle fiber optic terminus cleaning devices, highly effective at removing oil and dust contamination from pin and socket termini — either inside or outside connector shells. Traditional wet-swab cleaning methods add drying time and can even introduce new contaminants to the polished terminus endface. The Dry Action Cleaning Tool's novel dry cleaning strand gently sweeps and lifts away dust and residue from the terminus end-face without the problems associated with wet swab methods. The tool features a convenient single-unit configuration and an extendable tip for easy access to installed fiber optic termini — saving time and avoiding potential additional contamination.

	Fiber Optic Cleaning and Troubleshooting Process Flow

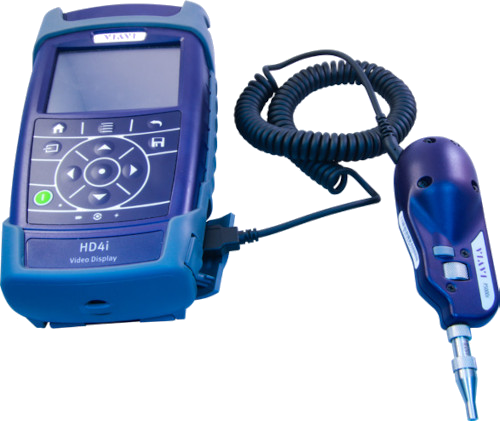

	GBS1000 Portable Fiber Optic Video Bore Scope Inspection System Fiber optic video bore scope inspection system for MIL-DTL-38999 and other small form-factor connectors such as SC, LC, ST and FC. Field/Bench Use System Includes Video Display Unit, Inspection Camera and Standard 2.5 mm & 1.25 mm Patchcord Inspection Tips Tips available Use with all Common F/O Connector Types: SC, LC, ST, and FC plus MIL-DTL-38999 and Small Form Factor Connectors 200X and 400X Magnification Built-in NiMH Rechargeable Battery with Automatic Shut-off Function Rugged Watertight Case
	GBS1001 Inspection Probe with USB Adapter and FiberChek Pro Software The GBS1001 is the only inspection probe today with a high resolution, all digital sensor and USB2 video stream which delivers high-resolution uncompressed images directly to your personal computer or cell phone with proper app installed. FiberChek Pro is an integrated hardware/software package engineered with the single purpose of critically and consistently grading fiber end-faces. Works hand in hand with the Quick Capture Analog Probe for visual inspection, taking pictures and testing fibers.

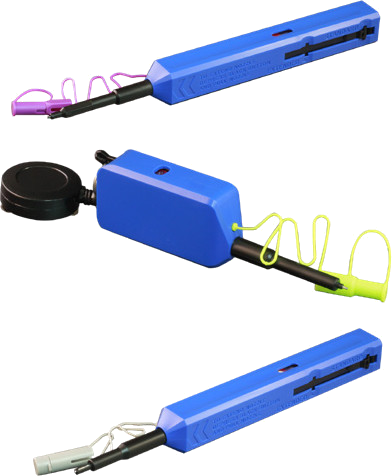

	Dry Action Cleaning Tools and Cleaning Swabs Dry Action Cleaning Tools Provides an easy way to thoroughly clean termini in all Glenair fiber optic connection systems. The dry cleaning strand gently sweeps away dust and residue without the need for solvents. Dry action cleaning tools are easy to use, durable, and crush- and impact-resistant. Dry Action Cleaning Tools for Test Adapters These dry action cleaning tools are configured for use with clean-through Glenair test adapters for GHD, NGCON, ARINC 801 and D38999 fiber optic connection systems. Cleaning Swabs Precision swabs for cleaning 1.25mm, 2.00mm, 2.5mm and Glenair 181-001 termini. Designed to work with cleaning solution to remove contaminants.
	Standard Banding Tools The Band-Master™ ATS Clamping System The 601-100 Band-Master ATS® Standard Tool with Counter for Standard Bands The 600-058 QPL Qualified (M81306/1A) Standard Banding Tool without Counter 601-005 Short Flat 601-006 Short Precoiled 601-040 Medium Flat 601-041 Medium Precoiled 601-049 Long Flat 601-050 Long Precoiled
	Micro Banding Tool The Band-Master™ ATS Clamping System The 601-101 Band-Master ATS® Micro Tool with Counter for Micro Bands The 600-061 QPL Qualified (M81306/1B) Micro Banding Tool without Counter 601-024 Short Flat 601-025 Short Precoiled 601-060 Medium Flat 601-061 Medium Precoiled 601-064 Long Flat 601-065 Long Precoiled
	EMI Shield Termination Instructions The Band-Master™ ATS Clamping System
